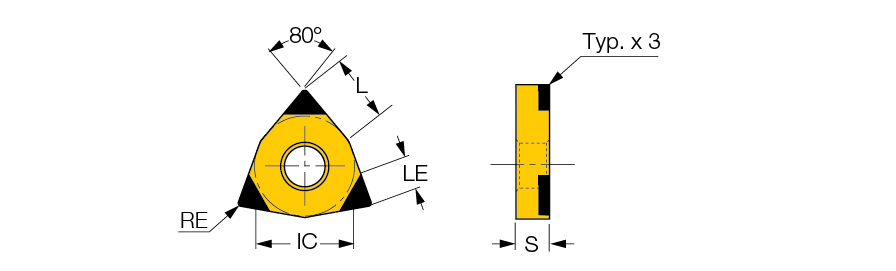

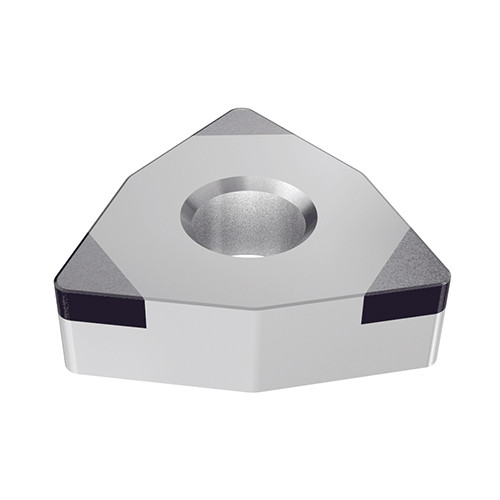

WNGA 432-M3 IB20H
Turning Insert; 80 Trigon ; 0.343″ Length × 1/2″ IC × 0.0315″ Corner Radius ; IB20H ; PCBN ; Uncoated
| Applicable Material | | Hard Materials | | Min D.O.C. | 0.002″ |
| Application | | Ext. 80° Trigon 95° Approach | Int. 80° Trigon 95° Approach | | Depth of Cut Maximum (APMX) | 0.02″ |
| Insert Style | WNGA | Min. Turning Feed (ft(min)) | 0.00196 ″/rev |
| Corner Radius (RE) | 0.0315″ | Max. Turning Feed (ft(max)) | 0.00787 ″/rev |
| Insert Size | 432 | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 0.343″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.187″ | Chip Breaker Type | M |
| Inscribed Circle Diameter (IC) | 1/2″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | PCBN | Shape | 80° Trigon |
| Coating | Uncoated | Series/List # | ISOI |
| Grade | IB20H | Body Material | Carbide |
| Tool Type | Turn Ultra hard Inserts | Model No | 8866423 |
Product Features
| Family Description | Multi-cornered CBN inserts for machining hardened steel. | Country of Origin | Japan |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.033
