TPGX 731T IB50

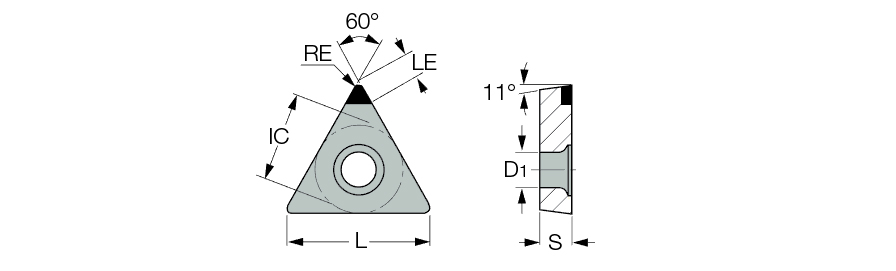

Turning Insert; 60 Triangle ; 3/8″ Length × 0.219″ IC × 0.0157″ Corner Radius ; IB50 ; PCBN ; Uncoated
| Applicable Material | | Cast Iron | Hard Materials | | Min D.O.C. | 0.002″ |
| Application | | Int. 60° Triangle 90° Approach | Int. 60° Triangle 91° Approach | | Depth of Cut Maximum (APMX) | 0.02″ |
| Insert Style | TPGX | Min. Turning Feed (ft(min)) | 0.00118 ″/rev |
| Corner Radius (RE) | 0.0157″ | Max. Turning Feed (ft(max)) | 0.00787 ″/rev |
| Insert Size | 731 | Clearance Angle Major (AN) | 11 Degrees |
| Cutting Edge Length (L) | 3/8″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.094″ | Chip Breaker Type | X |
| Inscribed Circle Diameter (IC) | 0.219″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | PCBN | Shape | 60° Triangle |
| Coating | Uncoated | Series/List # | ISOI |
| Grade | IB50 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.098″ | Model No | 8866423 |
| Tool Type | Turn Ultra hard Inserts |
Product Features

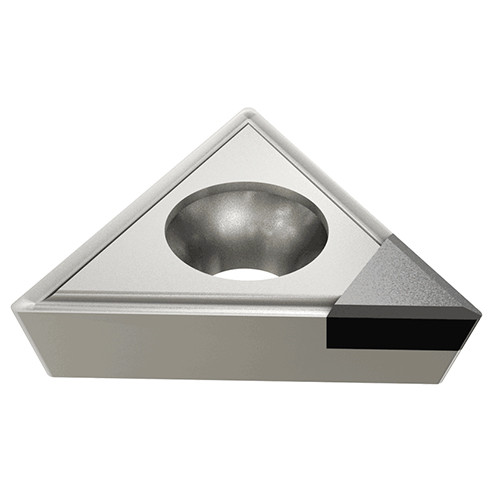

| Family Description | Triangular inserts with CBN single top corner brazed tip, 11° clearance and positive rake angle, for machining cast iron and hardened steel | Country of Origin | S.Korea |
| Remarks | For dimensions and tolerances, Click on More info |
Shipping Info
Package Length
1.75000
Package Width
1.75000
Package Height
.75000
Package Weight
0.015
