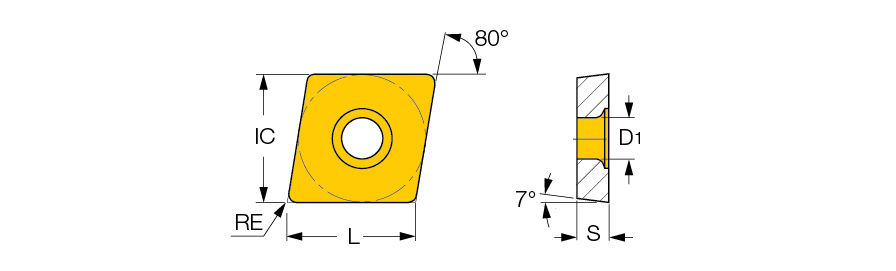

CCGT 03X104-F1P IC908
Turning Insert; 80 Rhombic ; 0.142″ Length × 0.141″ IC × 0.0157″ Corner Radius ; IC908 ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Min D.O.C. | 0.004″ |
| Application | | Int. 80° Diamond 95° Approach | | Depth of Cut Maximum (APMX) | 0.02″ |
| Insert Style | CCGT | Min. Turning Feed (ft(min)) | 0.00196 ″/rev |
| Corner Radius (RE) | 0.0157″ | Max. Turning Feed (ft(max)) | 0.0059 ″/rev |
| Insert Size | 03X | Clearance Angle Major (AN) | 10 Degrees |
| Cutting Edge Length (L) | 0.142″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.055″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 0.141″ | Chip Breaker Type | F1P |
| Insert Included Angle (EPSR) | 60 Degrees | Quantity | 10 |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiAlN | Shape | 80° Rhombic |
| Grade | IC908 | Series/List # | ISOI |
| Fixing Hole Diameter (D1) | 0.075″ | Body Material | Carbide |
| Tool Type | Turn Positive Inserts | Model No | 8866423 |
Product Features
| Family Description | 80° rhombic 7° flank inserts for very low finish turning conditions of steel. Low cutting forces due to sharp ground cutting edge and a positive rake angle. | Country of Origin | Japan |
Shipping Info
Package Weight
0.003
