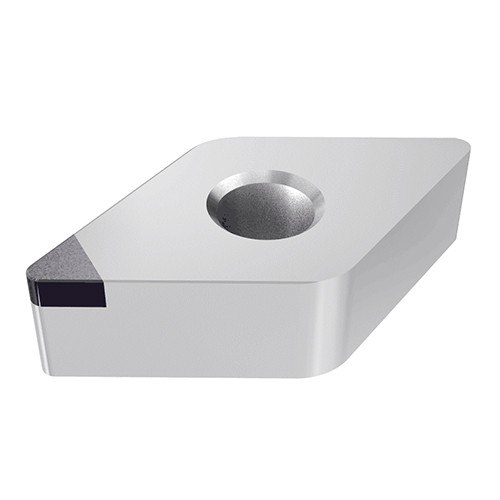

DNMA 431T IB55
Turning Insert; 55 Rhombic ; 0.61″ Length × 1/2″ IC × 0.0157″ Corner Radius ; IB55 ; PCBN ; Uncoated
| Applicable Material | | Cast Iron | Hard Materials | | Min D.O.C. | 0.002″ |
| Application | | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 93° Approach | Ext. Axial Turning | Ext. Profiling | Int. 55° Diamond 93 5° Approac | Int. Axial Turning | Int. Profiling | | Depth of Cut Maximum (APMX) | 0.02″ |
| Insert Style | DNMA | Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Corner Radius (RE) | 0.0157″ | Max. Turning Feed (ft(max)) | 0.0079 ″/rev |
| Insert Size | 431 | Number of Cutting Edges | 3 |

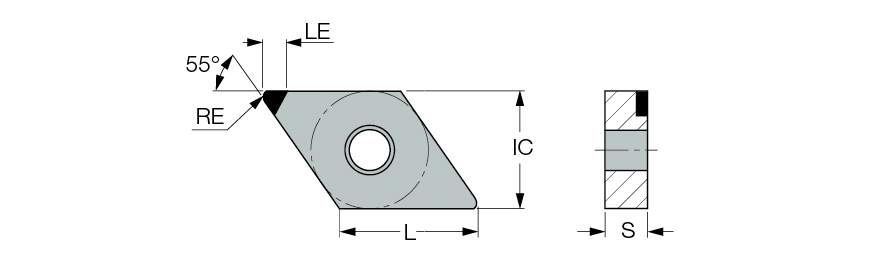

| Cutting Edge Length (L) | 0.61″ | Chip Breaker Type | A |
| Insert Thickness (S) | 0.187″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 60 Degrees | Shape | 55° Rhombic |
| Cutting Edge Material | PCBN | Series/List # | ISOI |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IB55 | Model No | 8866423 |
| Tool Type | Turn Ultra hard Inserts |
Product Features
| Family Description | CBN inserts with a flat rake for machining hardened steel. | Country of Origin | SWITZERLAND |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.037
