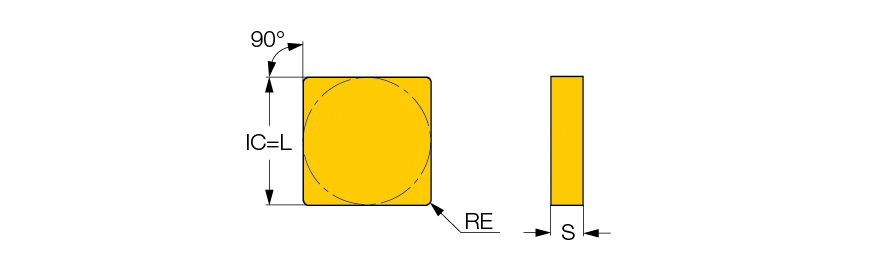

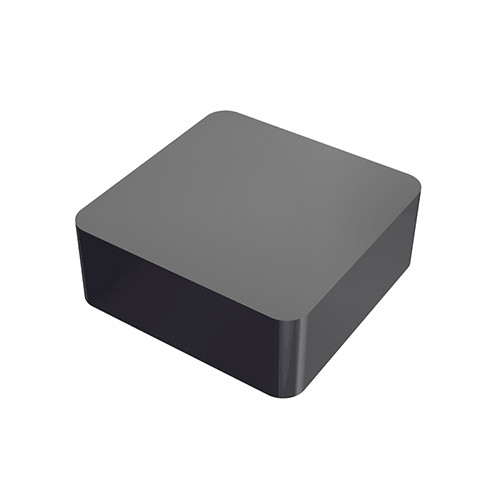

SNG 453T IW7
Turning Insert; Square ; 1/2″ Length × 1/2″ IC × 0.0472″ Corner Radius ; IW7 ; Whiskers ; Uncoated
| Applicable Material | | Hard Materials | Super-Alloys / Titanium | | Min D.O.C. | 0.004″ |
| Application | | Ext. 90° Square 45° Approach | Ext. 90° Square 75° Approach | Ext. 90° Square 75° Face Appr. | Ext. 90°Square 45°Face&Turn Ap | Facing | Shouldering | Slanted Shoulder & Chamfer | | Depth of Cut Maximum (APMX) | 0.197″ |
| Insert Style | SNG | Min. Turning Feed (ft(min)) | 0.00393 ″/rev |
| Corner Radius (RE) | 0.0472″ | Max. Turning Feed (ft(max)) | 0.01968 ″/rev |
| Insert Size | 453T | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 1/2″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.313″ | Chip Breaker Type | A |
| Inscribed Circle Diameter (IC) | 1/2″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Whiskers | Shape | Square |
| Coating | Uncoated | Series/List # | ISOI |
| Grade | IW7 | Body Material | Carbide |
| Tool Type | Turn Ultra hard Inserts | Model No | 8866423 |
Product Features
| Family Description | Negative square double-sided ceramic inserts for machining cast iron, hardened steel and heat-resistant alloys | Country of Origin | S.Korea |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.013
