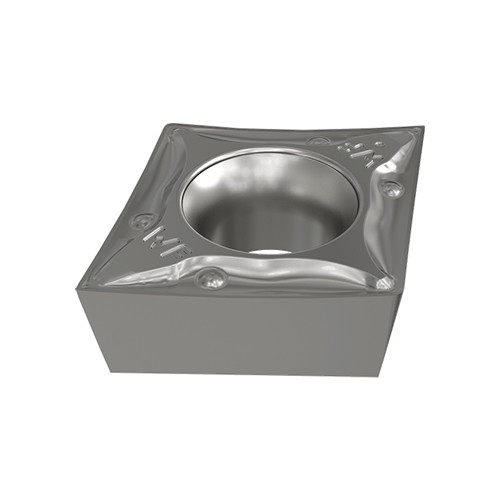

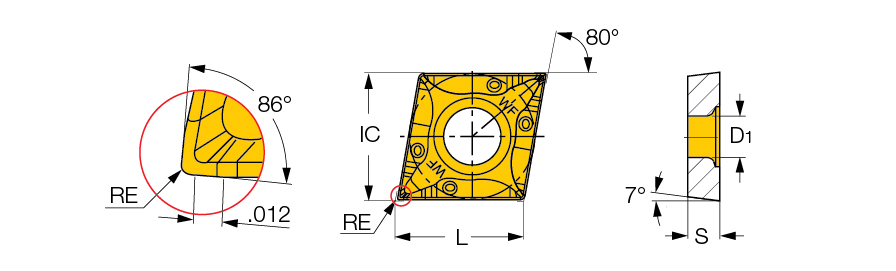

CCET 2-.002-WF IC907
Turning Insert; 80 Rhombic ; 0.248″ Length × 1/4″ IC × 0.002″ Corner Radius ; IC907 ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Min D.O.C. | 0.002″ |
| Application | | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 90° Approach | Int. 80° Diamond 95° Approach | | Depth of Cut Maximum (APMX) | 0.079″ |
| Insert Style | CCET | Min. Turning Feed (ft(min)) | 0.00039 ″/rev |
| Corner Radius (RE) | 0.002″ | Max. Turning Feed (ft(max)) | 0.00787 ″/rev |
| Insert Size | 2-. | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 0.248″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.094″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/4″ | Chip Breaker Type | WF |
| Insert Included Angle (EPSR) | 60 Degrees | Quantity | 10 |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiAlN | Shape | 80° Rhombic |
| Grade | IC907 | Series/List # | ISOI |
| Fixing Hole Diameter (D1) | 0.11″ | Body Material | Carbide |
| Tool Type | Turn Positive Inserts | Model No | 8866423 |
Product Features

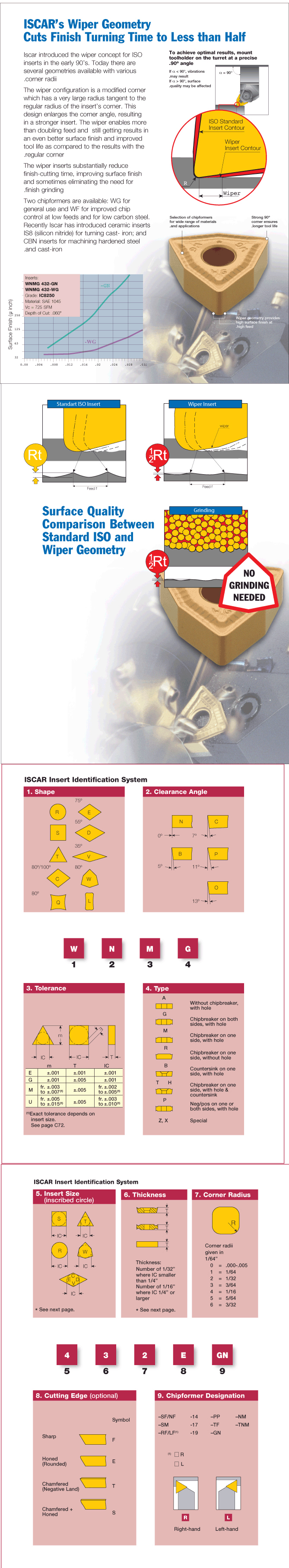

| Family Description | 80° rhombic inserts with a 7° positive flank and a wiper near the corner. Used for high feed finishing. Three to five times better surface finish compared to standard turning inserts at the same feeds. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.005
