TNMG 332-GN IC8350

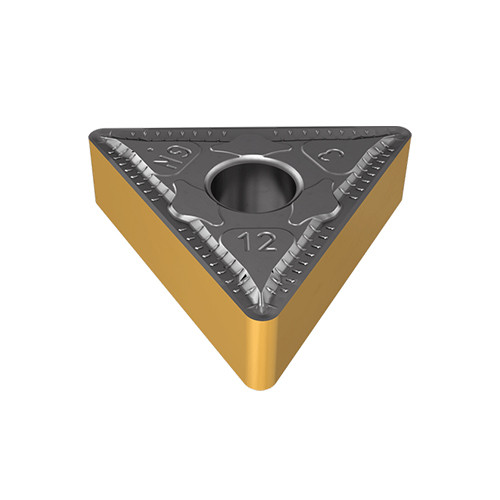

Double-sided triangular inserts, secure cutting edge, for medium- and semi-roughing on steel and cast iron.
| Applicable Material | | Steel | Stainless Steel | | Min D.O.C. | 0.039″ |
| Application | | Ext. 60° Triangle 60° Approach | Ext. 60° Triangle 91° Approach | Ext. 60° Triangle 93° Approach | Ext. 60° Triangle Facing | Int. 60° Triangle 91° Approach | Int. 60° Triangle 95° Approach | | Depth of Cut Maximum (APMX) | 0.138″ |
| Insert Style | TNMG | Min. Turning Feed (ft(min)) | 0.0071 ″/rev |

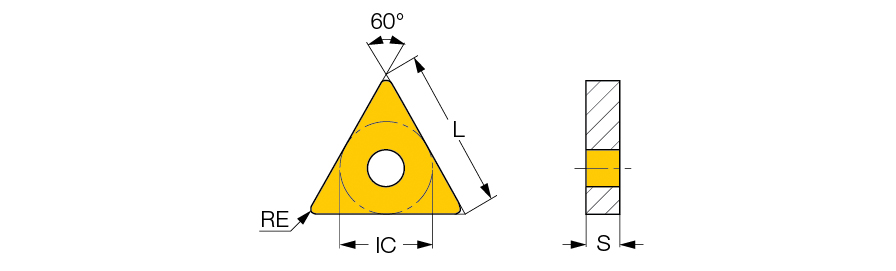

| Corner Radius (RE) | 0.0315″ | Max. Turning Feed (ft(max)) | 0.0154 ″/rev |
| Insert Size | 160 | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 0.65″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.187″ | Chip Breaker Type | GN |
| Inscribed Circle Diameter (IC) | 3/8″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 60° Triangle |
| Coating | TiCN+Al2O3+TiN | Series/List # | TNMG 332-GN |
| Grade | IC8350 | Body Material | Carbide |
| Tool Type | Turn Negative Inserts | Model No | 8866423 |
Product Features
| Family Description | Double-sided triangular inserts, secure cutting edge, for medium- and semi-roughing on steel and cast iron. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
