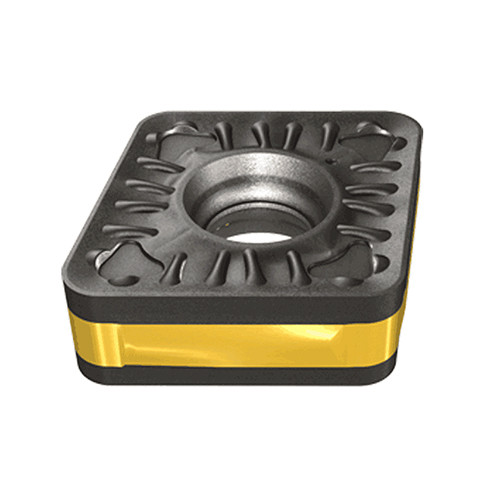

COMG 866-R3P-IQ IC8250

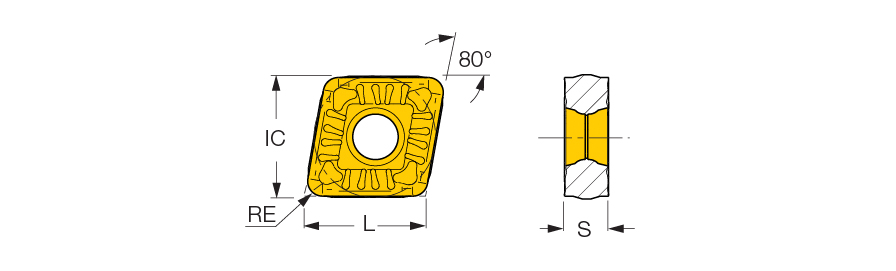

Turning Insert; 80 Rhombic ; 1.015″ Length × 1″ IC × 0.0945″ Corner Radius ; IC8250 ; Carbide ; TiCN+Al2O3+TiN
| Applicable Material | | Steel | Stainless Steel | | Depth of Cut Maximum (APMX) | 0.591″ |
| Application | | Ext. 100° Diamond 75° Approach | Ext. 80° Diamond 95° Approach | | Min. Turning Feed (ft(min)) | 0.01574 ″/rev |
| Insert Style | COMG | Max. Turning Feed (ft(max)) | 0.03937 ″/rev |
| Corner Radius (RE) | 0.0945″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 866 | Number of Cutting Edges | 3 |
| Cutting Edge Length (L) | 1.015″ | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/8″ | Chip Breaker Type | R3P |
| Inscribed Circle Diameter (IC) | 1″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 80° Rhombic |
| Coating | TiCN+Al2O3+TiN | Series/List # | ISOI |
| Grade | IC8250 | Body Material | Carbide |
| Tool Type | Turn Negative Inserts | Model No | 8866423 |
| Min D.O.C. | 0.157″ |
Product Features
| Family Description | Double-sided 7° negative side flank 80° rhombic inserts for heavy turning of steel. | Country of Origin | Israel |
Shipping Info
Package Weight
0.174
