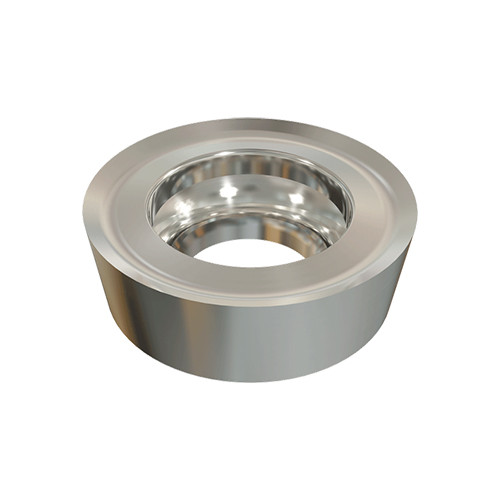

RCGT 10T3M0-AS IC20
Turning Insert; Round x 0.394″ IC ; IC20 ; Carbide ; Uncoated
| Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Depth of Cut Maximum (APMX) | 0.197″ |
| Application | | Ext. Round Face & Turn | | Min. Turning Feed (ft(min)) | 0.00787 ″/rev |
| Insert Style | RCGT | Max. Turning Feed (ft(max)) | 0.01574 ″/rev |
| Insert Size | 10T | Clearance Angle Major (AN) | 7 Degrees |
| Insert Thickness (S) | 0.156″ | Number of Cutting Edges | 3 |
| Inscribed Circle Diameter (IC) | 0.394″ | Chip Breaker Type | AS |
| Insert Included Angle (EPSR) | 60 Degrees | Quantity | 10 |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | Uncoated | Shape | Round |
| Grade | IC20 | Series/List # | ISOI |
| Fixing Hole Diameter (D1) | 0.173″ | Body Material | Carbide |
| Tool Type | Turn Inserts AL, HTA Geometric | Model No | 8866423 |
| Min D.O.C. | 0.039″ |
Product Features
| Family Description | Round 7° inserts with a 7° positive flank, very positive rake angle and sharp cutting edge for machining aluminum. | Country of Origin | S.Korea |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.008
