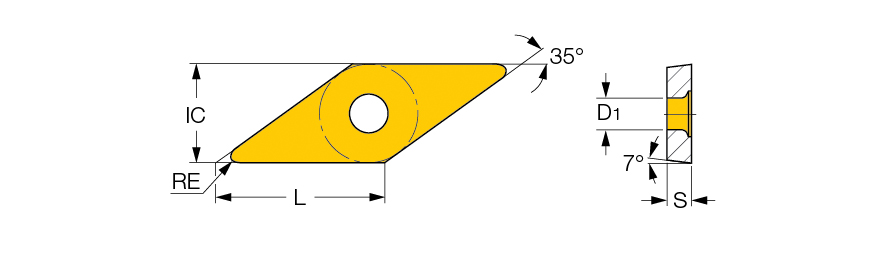

VCGT 130304-PF
Turning Insert; 35 Rhombic ; 0.512″ Length × 0.313″ IC × 0.016″ Corner Radius ; IC3028 ; Carbide ; TiCN
| Applicable Material | Steel|Stainless Steel|Hi-Temp Alloys| | Tool Type | Turn Positive Insert |
| Application | Back Boring | Boring | Copying | External Turning | Internal Facing | Min D.O.C. | 0.02″ |
| Insert Style | VCGT | Depth of Cut Maximum (APMX) | 0.118″ |
| Corner Radius (RE) | 0.016″ | Max. Turning Feed (ft(max)) | 0.0098 inch/rev |
| Insert Size | 130304 | Clearance Angle Major (AN) | 11 Degrees |
| Cutting Edge Length (L) | 0.512″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 1/8″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 0.313″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 35° Rhombic |
| Coating | TiCN | Series/List # | ISOI |
| Grade | IC3028 | Model No | 8866423 |
| Fixing Hole Diameter (D1) | 0.134″ |
Product Features
| Family Description | 35° rhombic 7° positive flank inserts. Used for semi-finishing and finishing applications on soft materials and exotic alloys. Positive rake angle, low cutting forces. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.014
