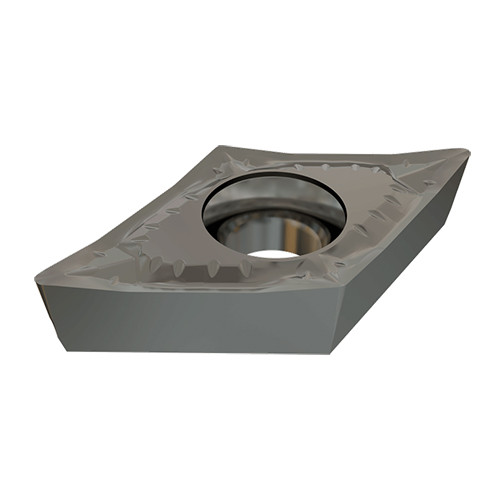

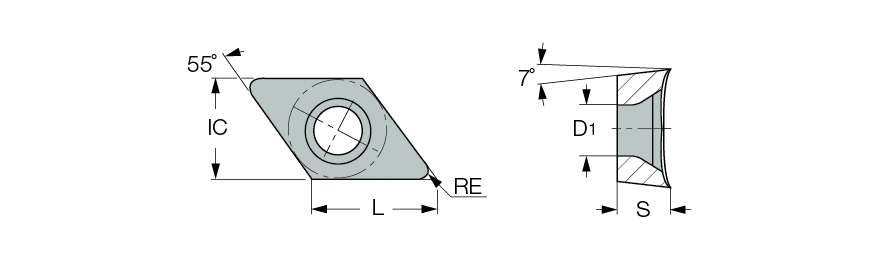

DCGT 3-1-AF IC20
Turning Insert; 55 Rhombic ; 0.457″ Length × 3/8″ IC × 0.0157″ Corner Radius ; IC20 ; Carbide ; Uncoated
| Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Min D.O.C. | 0.02″ |
| Application | | Ext. 55° Diamond 107.5° Appr. | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 91° Approach | Ext. 55° Diamond 93° Approach | Int. 55° Diamond 93 95° Approac | Y Axis for Swiss Type Machines | | Depth of Cut Maximum (APMX) | 0.098″ |
| Insert Style | DCGT | Min. Turning Feed (ft(min)) | 0.00196 ″/rev |
| Corner Radius (RE) | 0.0157″ | Max. Turning Feed (ft(max)) | 0.00984 ″/rev |
| Insert Size | 3-1 | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 0.457″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.156″ | Chip Breaker Type | AF |
| Inscribed Circle Diameter (IC) | 3/8″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 55° Rhombic |
| Coating | Uncoated | Series/List # | ISOI |
| Grade | IC20 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.173″ | Model No | 8866423 |
| Tool Type | Turn Inserts AL, HTA Geometric |
Product Features
| Family Description | The -AF chipformer was designed for machining aluminum in a wide range of machining conditions. It is peripherally ground and has a polished rake face. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
