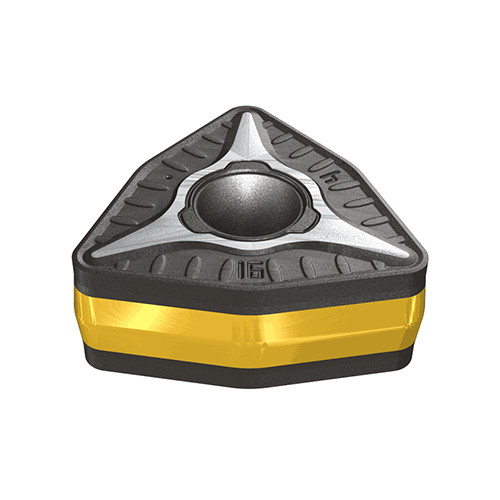

WOMG 554-T3P-IQ IC8150

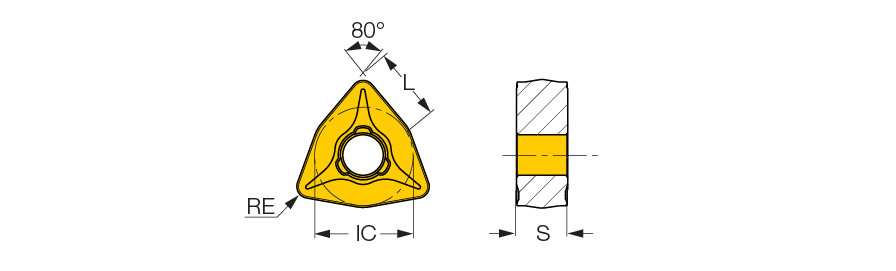

Turning Insert; 80 Trigon ; 0.428″ Length × 5/8″ IC × 0.063″ Corner Radius ; IC8150 ; Carbide ; TiCN+Al2O3+TiCN+TiN
| Applicable Material | | Steel | Cast Iron | | Min D.O.C. | 0.039″ |
| Application | | Ext. 80° Trigon 95° Approach | Ext. Trigon 18.5° Approach | | Depth of Cut Maximum (APMX) | 0.11″ |
| Insert Style | WOMG | Min. Turning Feed (ft(min)) | 0.0591 ″/rev |
| Corner Radius (RE) | 0.063″ | Max. Turning Feed (ft(max)) | 0.11811 ″/rev |
| Insert Size | 554 | Number of Cutting Edges | 3 |
| Cutting Edge Length (L) | 0.428″ | Chip Breaker Type | T3P |
| Insert Thickness (S) | 0.313″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 5/8″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 60 Degrees | Shape | 80° Trigon |
| Cutting Edge Material | Carbide | Series/List # | ISOI |
| Coating | TiCN+Al2O3+TiCN+TiN | Body Material | Carbide |
| Grade | IC8150 | Model No | 8866423 |
| Tool Type | Turn Negative Inserts |
Product Features
| Family Description | Double-sided 6° negative side flank trigon inserts for high feed turning of steel. | Country of Origin | Israel |

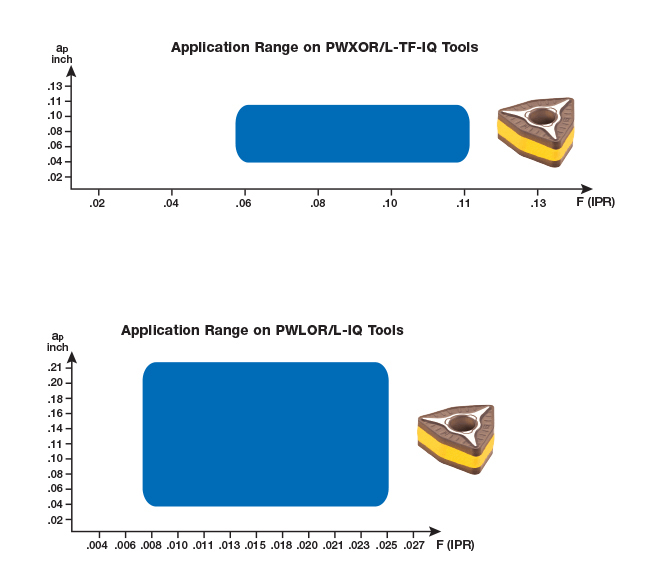

| Remarks | The specified machining recommendations in the above table are valid only for PWXOR/L-TF-IQ tools. For PWLOR/L-IQ tools: ap= .118-.276, ft= .012-.031 inch/rev. |
Shipping Info
Package Weight
0.06
