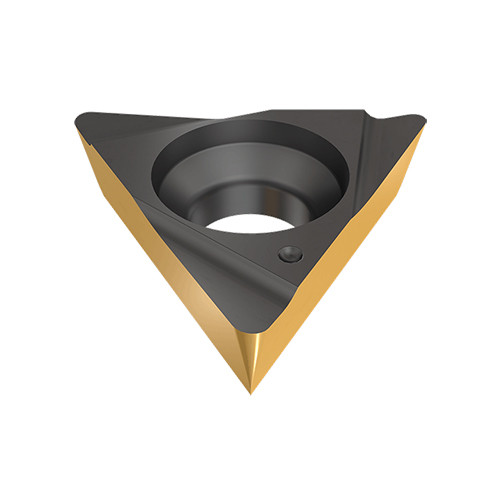

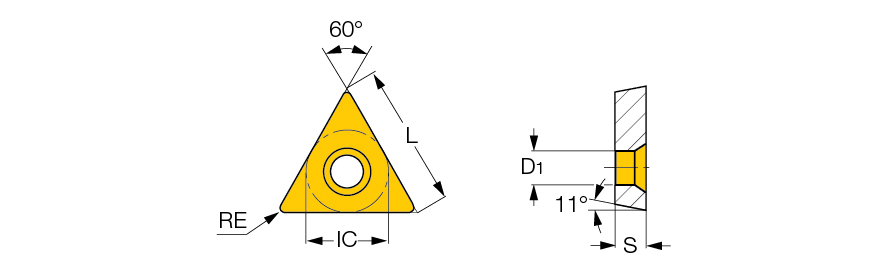

TPGX 221-L IC54
Turning Insert; 60 Triangle ; 0.433″ Length × 1/4″ IC × 0.0157″ Corner Radius ; IC54 ; Carbide ; Uncoated
| Applicable Material | | Steel | Stainless Steel | | Min D.O.C. | 0.039″ |
| Application | | Int. 60° Triangle 90° Approach | Int. 60° Triangle 91° Approach | | Depth of Cut Maximum (APMX) | 0.118″ |
| Insert Style | TPGX | Min. Turning Feed (ft(min)) | 0.0059 ″/rev |
| Corner Radius (RE) | 0.0157″ | Max. Turning Feed (ft(max)) | 0.00787 ″/rev |
| Insert Size | 221 | Clearance Angle Major (AN) | 11 Degrees |
| Cutting Edge Length (L) | 0.433″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 1/8″ | Chip Breaker Type | X |
| Inscribed Circle Diameter (IC) | 1/4″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 60° Triangle |
| Coating | Uncoated | Series/List # | ISOI |
| Grade | IC54 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.138″ | Model No | 8866423 |
| Tool Type | Turn Positive Inserts |
Product Features
| Family Description | Triangular 11° positive flank inserts with a ground chipformer. Used for finishing, provide excellent surface finish. Suitable for a wide range of materials. | Country of Origin | S.Korea |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.005
