LNMX 301940-WM IC8250
Turning Insert; Rectangle ; 1.181″ Length × 3/8″ IC × 0.1575″ Corner Radius ; IC8250 ; Carbide ; TiCN+Al2O3+TiN
| Applicable Material | | Steel | Stainless Steel | | Min D.O.C. | 0.118″ |
| Application | | Ext. Tangential 84° Approach | Ext. Tangential 93° Approach | ISO Turning Inserts | | Depth of Cut Maximum (APMX) | 0.276″ |
| Insert Style | LNMX | Min. Turning Feed (ft(min)) | 0.0276 ″/rev |
| Corner Radius (RE) | 0.1575″ | Max. Turning Feed (ft(max)) | 0.0669 ″/rev |
| Insert Size | 301940 | Clearance Angle Major (AN) | 11 Degrees |
| Cutting Edge Length (L) | 1.181″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 3/4″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 3/8″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | Rectangle |
| Coating | TiCN+Al2O3+TiN | Series/List # | ISOI |
| Grade | IC8250 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 1/4″ | Model No | 8866423 |
| Tool Type | Turn Negative Inserts |
Product Features
| Family Description | Tangentially clamped inserts for railroad wheel re-turning. | Country of Origin | Israel |

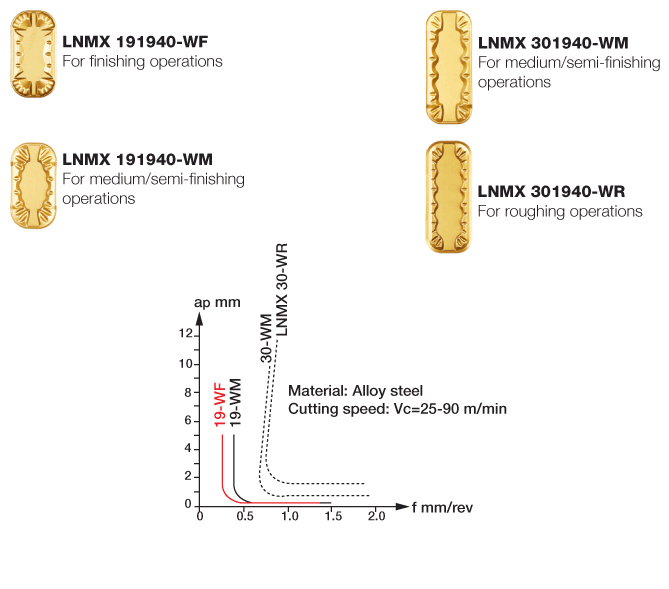

| Remarks | For chipformer information and application range, click on "More Info" |
Shipping Info
Package Weight
0.198
