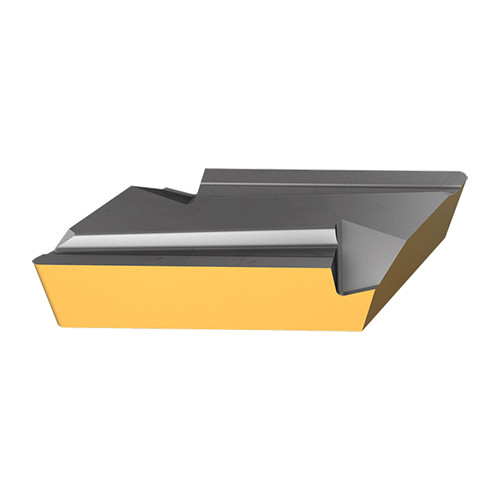

KNUX 3331 L11 IC8150
Turning Insert; 55 Parallelogram ; 0.776″ Length × 3/8″ IC × 0.0197″ Corner Radius ; IC8150 ; Carbide ; TiCN+Al2O3+TiCN+TiN
| Applicable Material | | Steel | Cast Iron | | Depth of Cut Maximum (APMX) | 0.157″ |
| Application | | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 93° Approach | Int. 55° Diamond 93 95° Approac | | Min. Turning Feed (ft(min)) | 0.00393 ″/rev |
| Insert Style | KNUX | Max. Turning Feed (ft(max)) | 0.01574 ″/rev |

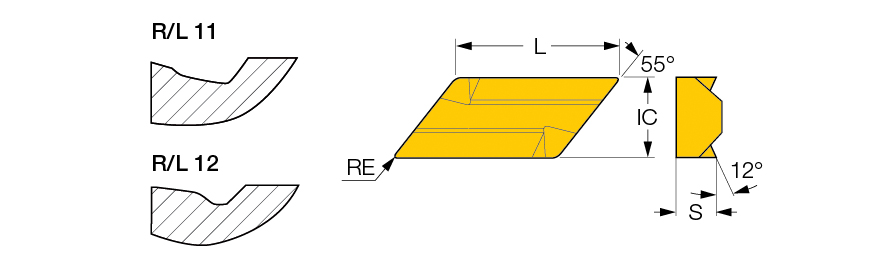

| Corner Radius (RE) | 0.0197″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 333 | Number of Cutting Edges | 3 |
| Cutting Edge Length (L) | 0.776″ | Cutting Direction (HAND) | Left Hand |
| Insert Thickness (S) | 0.187″ | Chip Breaker Type | R/L11 |
| Inscribed Circle Diameter (IC) | 3/8″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 55° Parallelogram |
| Coating | TiCN+Al2O3+TiCN+TiN | Series/List # | ISOI |
| Grade | IC8150 | Body Material | Carbide |
| Tool Type | Turn Negative Inserts | Model No | 8866423 |
| Min D.O.C. | 0.039″ |
Product Features
| Family Description | 55° parallelogram inserts for profiling. Negative along the cutting edge and positive flank along the narrow edge. | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.031
