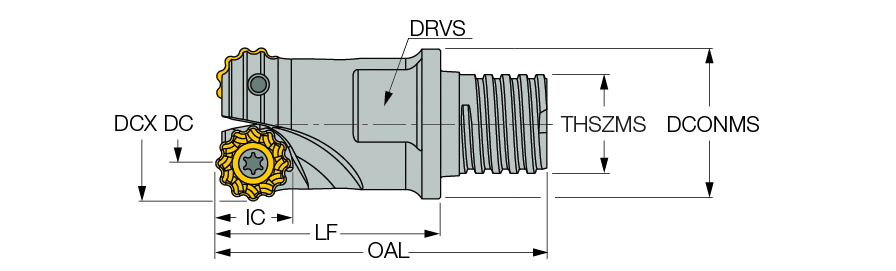

ERW D013A025-2-MMT15-12*
Indexable End Mill; 0.512″ Dia. × 0.197″ Max Depth × 0.945″ Shank Dia. × 2.087″ OAL
| Cutting Diameter (DC/DCX) | 0.512″ | Tool Type | Round corner cutters |
| Cutting Diameter (DC) | 0.512″ | Connection Thread Nominal Size Machine Side (THSZMS) | T15 |
| Cutting Item Count (CICT) | 2 | Drive Size (DRVS) | 0.669″ |
| Depth of Cut Maximum (APMX) | 0.197″ | Flute Count (NOF) | 4 |
| Overall Length (OAL) | 2.087″ | Torque (TQ) | 354.03 lbfxin |
| Shank Type | Round | Corner Radius (RE) | 0.2362″ |
| Ramping Angle Maximum (RMPX) | 2 Degrees | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Shouldering | Slotting | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Connection Diameter Machine Side (DCONMS) | 0.945″ | Cutting Direction (HAND) | Right Hand |
| Master Insert Identification (MIID) | RCCT 1206MO | Measurement Type | Inch |
| Weight of Item (WT) | 0.19 Lbs | Body Material | Steel |
| Head Length (LH) | 30 mm | Connection Code Machine Side (CCMS) | MultiMaster |
| Functional Length (LF) | 1.417″ | Cutting Diameter Maximum (DCX) | 0.984″ |
Product Features
| Family Description | MILLSHRED - Endmills with MULTI-MASTER threaded adaptation, carrying round inserts with serrated cutting edges or regular round inserts. Used for rough machining applications on small dies and low power machines. | Country of Origin | Israel |
| Remarks | Do not apply lubricant to the MULTI-MASTER threaded connection For adaptation, click on "More Info" |
Shipping Info
Package Weight
0.384
