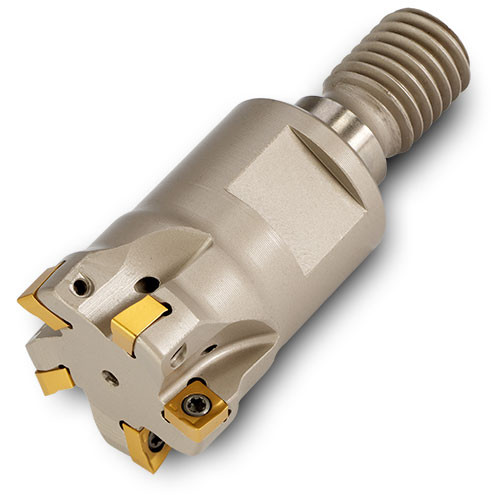

1TJ1C-07015X6R01
Indexable End Mill; 3/4″ Dia. × 0.18″ LOC ; 90 Degrees
| Cutting Diameter (DC/DCX) | 3/4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 3/4″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Cutting Item Count (CICT) | 4 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.18″ | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 3.3 Degrees | Body Material | Steel |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Hub Diameter (DHUB) | 0.69″ |
| Weight of Item (WT) | 0.73 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
| Functional Length (LF) | 1-1/2″ |
Product Features
| Family Description | 32-63 Ra surface finishes when engaging the wiper (WEP) Double dovetail pocket fosters easy insert indexing & eliminates insert screw stress | Country of Origin | Usa |
Shipping Info
Package Weight
0.000
