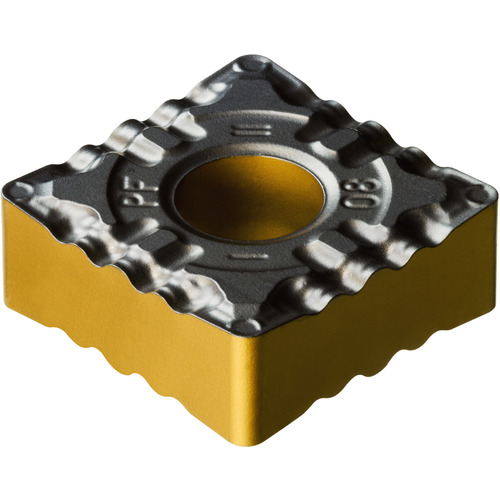

SNMG432PF 4305 T-MAX P
Turning Insert; SNMG432PF T-MAX P 4305 ; 1/2″ IC ; 0.032″ Corner Radius ; Carbide ; Neutral ; TiCN+Al2O3+TiN
| Applicable Material | | Cast Iron|Stainless Steel|Steel|Non-Ferrous Material | | Grade | 4305 |
| Insert Style | SNMG | Fixing Hole Diameter (D1) | 0.203″ |
| Corner Radius (RE) | 0.032″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 432 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 0.187″ | Chip Breaker Type | PF |
| Inscribed Circle Diameter (IC) | 1/2″ | Quantity | 1 |
| Cutting Edge Material | Carbide | Shape | Square |
| Coating | TiCN|Al2O3|TiN | Model No | SNMG432-PF |
Product Features
| Family Description | 0 | Country of Origin | Sweden |
Shipping Info
Package Weight
0.223
