1TJ1D-06008TRR01

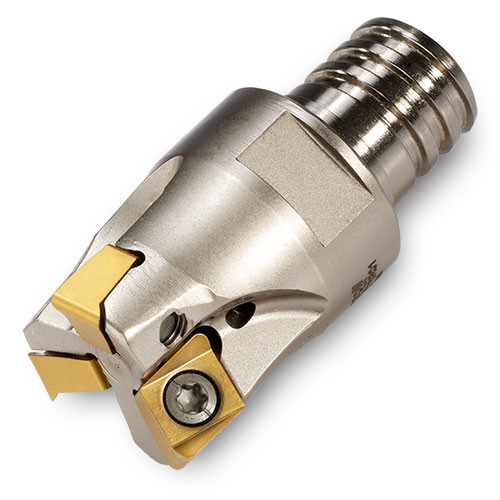

Indexable End Mill; 5/8″ Dia. × 0.2″ LOC
| Cutting Diameter (DC/DCX) | 5/8″ | Functional Length (LF) | 0.8″ |
| Cutting Diameter (DC) | 5/8″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 2 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.2″ | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 3.1 Degrees | Body Material | Steel |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Hub Diameter (DHUB) | 0.6″ |
| Weight of Item (WT) | 0.73 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | 32-63 Ra finishes when using insert with integrated wiper (WEP). 63-125 Ra finishes when using insert with no integrated wiper Backdraft insert option to reduce vibration for long reach applications | Country of Origin | S.Korea |
