1TV1D-07010TSR02

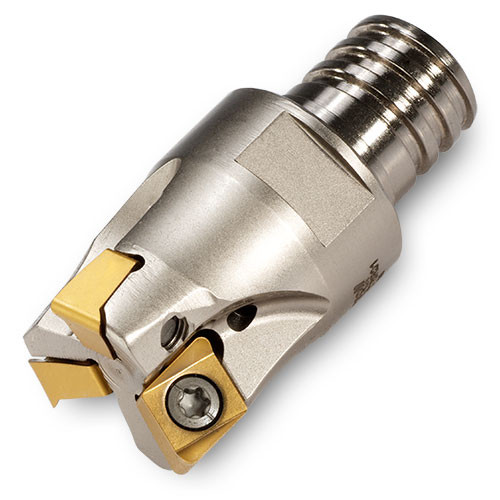

Indexable End Mill; 3/4″ Dia.
| Cutting Diameter (DC/DCX) | 3/4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 3/4″ | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 3 | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 4.7 Degrees | Body Material | Steel |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | | Hub Diameter (DHUB) | 0.72″ |
| Weight of Item (WT) | 0.73 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
| Functional Length (LF) | 1″ |
Product Features
| Family Description | Backdraft with single point diameter contact lowers radial forces, ideal for long reach side wall finishing Insert corners: .015″, .031″, .047″, .062″ & .079″ R | Country of Origin | Usa |
