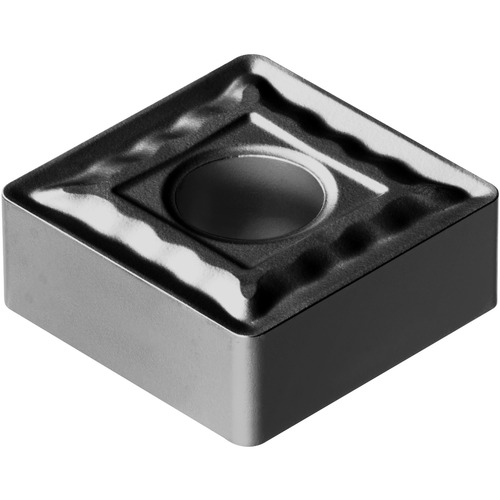

SNMG644QM 1105 TURNING
Turning Insert; SNMG644QM 1105 ; 3/4″ IC ; 0.062″ Corner Radius ; Carbide ; Neutral ; TiAlN
| Applicable Material | | Hi-Temp Alloys|Stainless Steel|Steel|Non-Ferrous Material | | Grade | 1105 |
| Insert Style | SNMG | Fixing Hole Diameter (D1) | 0.312″ |
| Corner Radius (RE) | 0.062″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 644 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 1/4″ | Chip Breaker Type | QM |
| Inscribed Circle Diameter (IC) | 3/4″ | Quantity | 10 |
| Cutting Edge Material | Carbide | Shape | Square |
| Coating | TiAlN | Model No | SNMG644-QM |
Product Features
| Family Description | 0 | Country of Origin | Sweden |
Shipping Info
Package Weight
0.714
