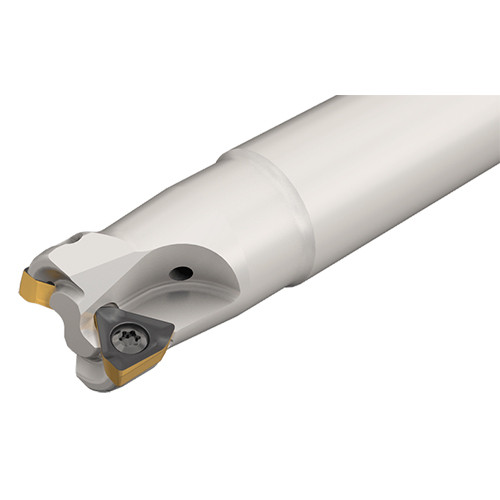

HM390 ETC D25-4-W25-07
Indexable End Mill; 25 mm Dia. × 5 mm LOC × 25 mm Shank Dia. × 95 mm OAL ; 4 FL ; Weldon Shank ; 90 Degrees
| Cutting Diameter (DC/DCX) | 25 mm | Head Length (LH) | 35 mm |
| Cutting Diameter (DC) | 25 mm | Functional Length (LF) | 63 mm |
| Cutting Item Count (CICT) | 4 | Tool Type | 90° indexable endmills |
| Depth of Cut Maximum (APMX) | 5 mm | Flute Count (NOF) | 4 |
| Overall Length (OAL) | 95 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Weldon | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 1 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Body Material | Steel |
| Master Insert Identification (MIID) | HM390 TCKT 0703PCTR | Connection Code Machine Side (CCMS) | Weldon |
| Weight of Item (WT) | 0.28 Kg |
Product Features
| Family Description | 90° endmills carrying HM390 TCKT 0703 triangular inserts with 3 helical cutting edges. | Country of Origin | Israel |
| Remarks | Insert clamping screw must be lubricated every indexing. |
Shipping Info
Package Weight
0.783
