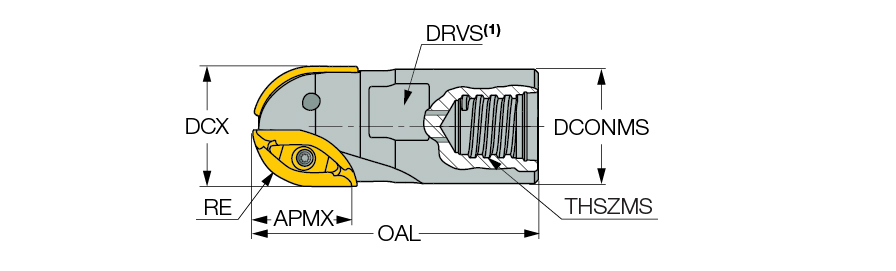

TS BCM D20-T12
| Cutting Diameter (DC/DCX) | 20 mm | Tool Type | Ball nose endmills |
| Cutting Diameter (DC) | 20 mm | Connection Thread Nominal Size Machine Side (THSZMS) | T12 |
| Cutting Item Count (CICT) | 2 | Drive Size (DRVS) | 15 mm |
| Depth of Cut Maximum (APMX) | 17 mm | Flute Count (NOF) | 4 |
| Overall Length (OAL) | 130 mm | Body Diameter (BD) | 18.5 mm |
| Shank Type | Round | Corner Radius (RE) | 10 mm |
| Ramping Angle Maximum (RMPX) | 2.1 Degrees | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Cutting Direction (HAND) | Right Hand |
| Master Insert Identification (MIID) | BCR D200.. | Measurement Type | Metric |
| Weight of Item (WT) | 0.06 Kg | Body Material | Steel |
| Head Length (LH) | 30 mm | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | DROPMILL ball nose milling heads with tangent straight edge insert and SHANK-MASTER threaded adaptation for semi-finish profiling. | Country of Origin | Israel |
Shipping Info
Package Weight
0.254
