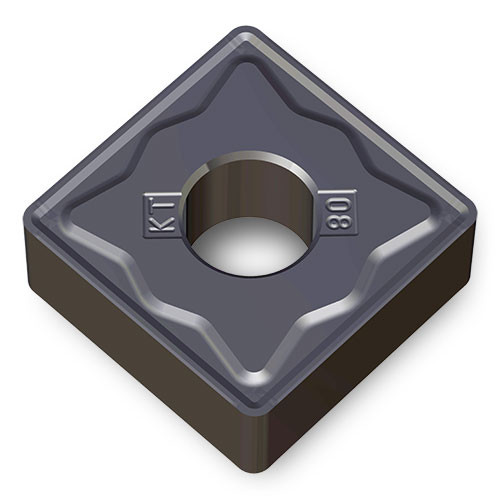

SNMG433KT TT7015
Turning Insert; 60 Triangle × 1/2″ IC × 0.047″ Corner Radius ; TT7015 ; Carbide ; TiCN+Al2O3
| Insert Style | SNMG | Min. Turning Feed (ft(min)) | 0.011″ |
| Corner Radius (RE) | 0.047″ | Max. Turning Feed (ft(max)) | 0.028″ |
| Insert Size | 433 | Number of Cutting Edges | 8 |
| Insert Thickness (S) | 0.187″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/2″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 60° Triangle |
| Coating | TiCN+Al2O3 | Series/List # | ISOI |
| Grade | TT7015 | Body Material | Carbide |
| Min D.O.C. | 0.02″ | Cutting Edge Effective Length (LE) | 0.453″ |
| Depth of Cut Maximum (APMX) | 0.276″ | Model No | 8866423 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.024
