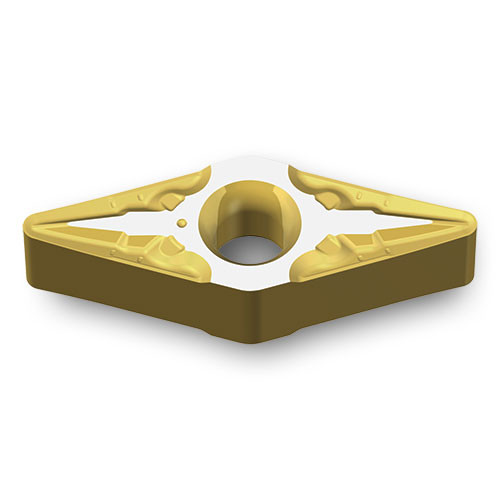

VNMX2.532FM TT5100
Turning Insert; 60 Triangle ; 0.546″ Length × 0.313″ IC × 0.031″ Corner Radius ; TT5100 ; Carbide ; TiCN+Al2O3
| Insert Style | VNMX | Depth of Cut Maximum (APMX) | 0.059″ |
| Corner Radius (RE) | 0.031″ | Min. Turning Feed (ft(min)) | 0.004″ |
| Insert Size | 2.532 | Max. Turning Feed (ft(max)) | 0.014″ |
| Cutting Edge Length (L) | 0.546″ | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 0.187″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 0.313″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 35 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 60° Triangle |
| Coating | TiCN+Al2O3 | Series/List # | ISOI |
| Grade | TT5100 | Body Material | Carbide |
| Min D.O.C. | 0.012″ | Model No | 8866423 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.020
