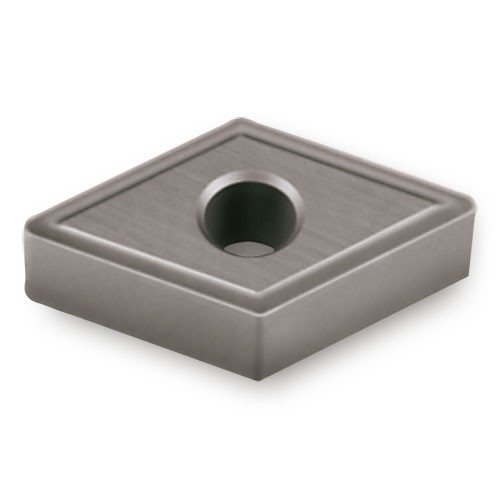

DNMG442CE AB30
Turning Insert; 60 Triangle ; 0.61″ Length × 1/2″ IC × 0.031″ Corner Radius ; AB30
| Insert Style | DNMG | Min. Turning Feed (ft(min)) | 0.002″ |
| Corner Radius (RE) | 0.031″ | Max. Turning Feed (ft(max)) | 0.008″ |
| Insert Size | 442 | Number of Cutting Edges | 4 |
| Cutting Edge Length (L) | 0.61″ | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 1/4″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 55 Degrees | Shape | 60° Triangle |
| Grade | AB30 | Series/List # | ISOI |
| Min D.O.C. | 0.004″ | Body Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.098″ | Model No | 8866423 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.016
