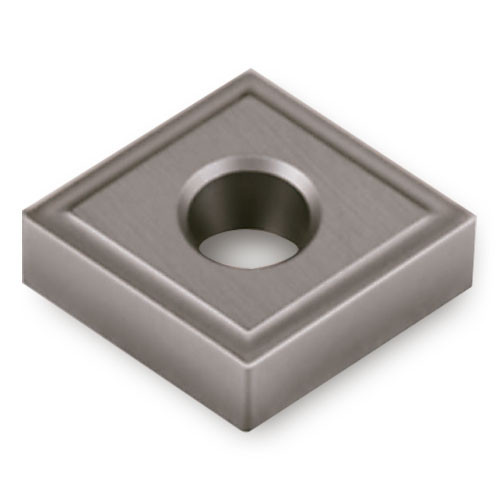

CNMG431CE AB30
Turning Insert; 60 Triangle ; 0.508″ Length × 1/2″ IC × 0.016″ Corner Radius ; AB30
| Insert Style | CNMG | Min. Turning Feed (ft(min)) | 0.002″ |
| Corner Radius (RE) | 0.016″ | Max. Turning Feed (ft(max)) | 0.006″ |
| Insert Size | 431 | Number of Cutting Edges | 4 |
| Cutting Edge Length (L) | 0.508″ | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 0.313″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 80 Degrees | Shape | 60° Triangle |
| Grade | AB30 | Series/List # | ISOI |
| Fixing Hole Diameter (D1) | 0.203″ | Body Material | Carbide |
| Min D.O.C. | 0.004″ | Model No | 8866423 |
| Depth of Cut Maximum (APMX) | 0.118″ |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.009
