SCGW32.51LS2 TB730

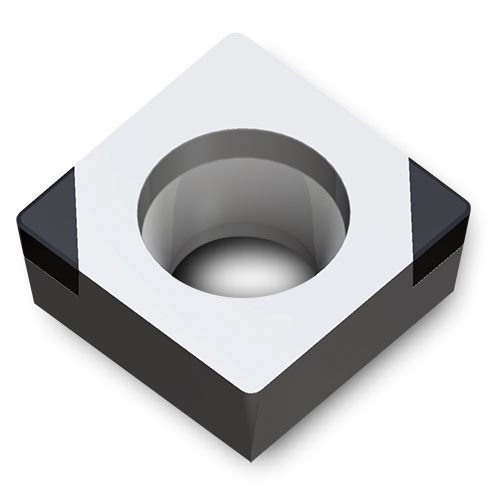

Turning Insert; 60 Triangle × 3/8″ IC × 0.016″ Corner Radius ; TB730 ; PCBN
| Insert Style | SCGW | Max. Turning Feed (ft(max)) | 0.012″ |
| Corner Radius (RE) | 0.016″ | Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 32.51 | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.157″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Cutting Edge Material | PCBN | Shape | 60° Triangle |
| Grade | TB730 | Series/List # | ISOI |
| Fixing Hole Diameter (D1) | 0.173″ | Body Material | Carbide |
| Min D.O.C. | 0.002″ | Cutting Edge Effective Length (LE) | 0.106″ |
| Depth of Cut Maximum (APMX) | 0.012″ | Model No | 8866423 |
| Min. Turning Feed (ft(min)) | 0.002″ |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.035
