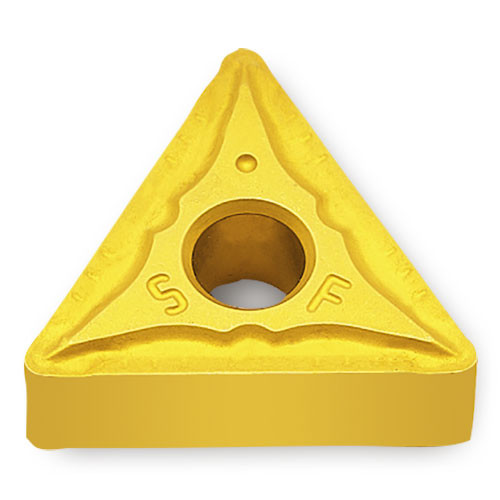

TNMG332SF TT5100
Turning Insert; 60 Triangle ; 0.65″ Length × 3/8″ IC × 0.031″ Corner Radius ; TT5100 ; Carbide ; TiCN+Al2O3
| Insert Style | TNMG | Depth of Cut Maximum (APMX) | 0.059″ |
| Corner Radius (RE) | 0.031″ | Min. Turning Feed (ft(min)) | 0.004″ |
| Insert Size | 332 | Max. Turning Feed (ft(max)) | 0.012″ |
| Cutting Edge Length (L) | 0.65″ | Number of Cutting Edges | 6 |
| Insert Thickness (S) | 0.187″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 60° Triangle |
| Coating | TiCN+Al2O3 | Series/List # | ISOI |
| Grade | TT5100 | Body Material | Carbide |
| Min D.O.C. | 0.028″ | Model No | 8866423 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.019
