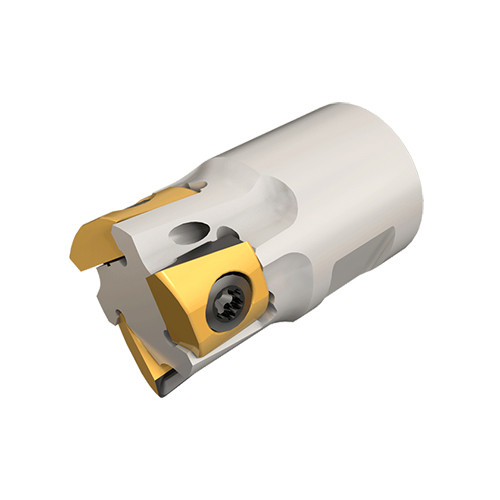

TS T290 ELN D16-04-T10-05
| Cutting Diameter (DC/DCX) | 16 mm | Tool Type | 90° indexable endmills |
| Cutting Diameter (DC) | 16 mm | Connection Thread Nominal Size Machine Side (THSZMS) | T10 |
| Cutting Item Count (CICT) | 4 | Drive Size (DRVS) | 13 mm |
| Depth of Cut Maximum (APMX) | 5 mm | Flute Count (NOF) | 4 |
| Application | | Counter Boring | Shouldering | Slotting | | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 15.2 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Master Insert Identification (MIID) | T290 LNHT 050202TR | Cutting Direction (HAND) | Right Hand |
| Weight of Item (WT) | 0.02 Kg | Measurement Type | Metric |
| Functional Length (LF) | 25 mm | Body Material | Steel |
Product Features
| Family Description | SUMOMILL endmill heads with tangentially clamped inserts and SHANK-MASTER threaded adaptation. | Country of Origin | Israel |
Shipping Info
Package Weight
0.172
