HOE D32-03-W32-R06

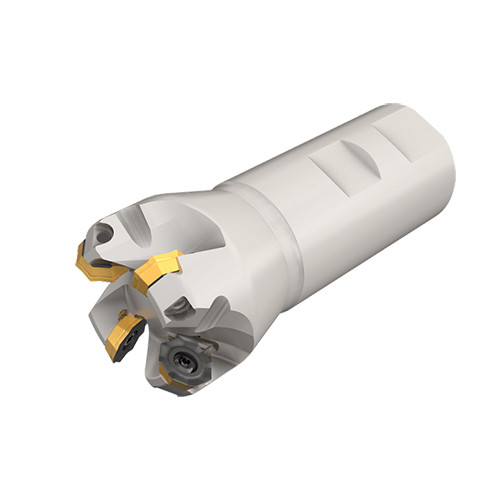

Indexable End Mill; 32 mm Dia. × 5.5 mm LOC × 32 mm Shank Dia. × 96.2 mm OAL ; Weldon Shank ; 42 Degrees

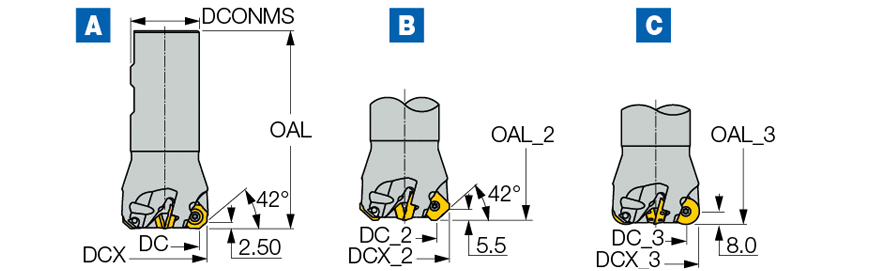

| Cutting Diameter (DC/DCX) | 32 mm | Functional Length (LF) | 59 mm |
| Cutting Diameter (DC) | 29.4 mm | Tool Type | Chamfering endmills |
| Cutting Item Count (CICT) | 3 | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 2.5 mm | Tool Cutting Edge Angle (KAPR) | 42 Degrees |
| Overall Length (OAL) | 95 mm | Diameter | 26.8 mm |
| Shank Type | Weldon | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 5.9 Degrees | Measurement Type | Metric |
| Application | | Facing | Helical Interpolation | Profiling | Rampdown | Slanted Shoulder & Chamfer | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Connection Code Machine Side (CCMS) | Weldon |
| Master Insert Identification (MIID) | OEMT 060405AER-76 | Cutting Diameter Maximum (DCX) | 41.4 mm |
| Weight of Item (WT) | 0.54 Kg |
Product Features
| Family Description | Endmills carrying octagonal, square and round inserts. | Country of Origin | Israel |
| Remarks | A - with OEM. 060405... insert B - with SECT/SEMT 1404... insert C - with REM. 1505... round insert |
Shipping Info
Package Weight
1.411
