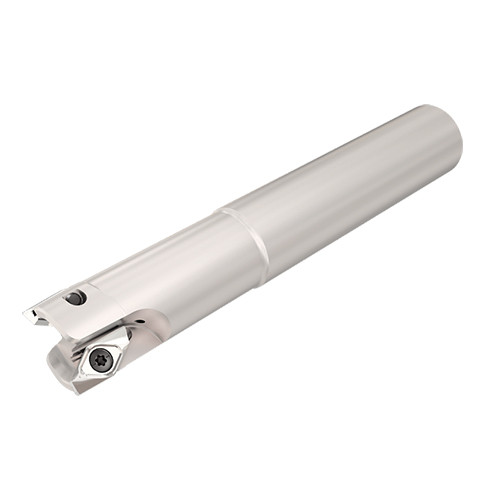

HSM90S EAL-D32-2-C32-14
Indexable End Mill; 32 mm Dia. × 13.5 mm LOC × 32 mm Shank Dia. × 200 mm OAL ; 2 FL ; Round Shank ; 90 Degrees

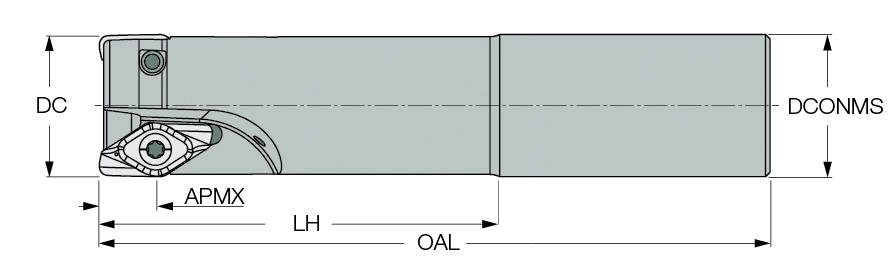

| Cutting Diameter (DC/DCX) | 32 mm | Weight of Item (WT) | 1.02 Kg |
| Cutting Diameter (DC) | 32 mm | Head Length (LH) | 80 mm |
| Cutting Item Count (CICT) | 2 | Tool Type | 90° Indexable for Aluminum |
| Depth of Cut Maximum (APMX) | 13.5 mm | Flute Count (NOF) | 2 |
| Overall Length (OAL) | 200 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 10 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Body Material | Steel |
| Master Insert Identification (MIID) | HSM90S APCR 140508R-P | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | Long reach endmills carrying HSM90S APCR 1405... inserts for machining aluminum. | Country of Origin | Israel |
| Remarks | Important: When machining at very high cutting speeds it is recommended to replace the screw when replacing the insert Insert tightening torque: 6 (Nxm) |
Shipping Info
Package Weight
2.606
