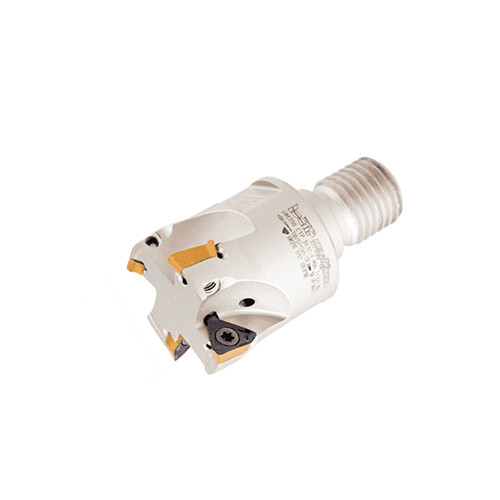

HM390 ETP D25-3-M12
Indexable End Mill; 25 mm Dia. × 8 mm LOC × 21 mm Shank Dia. × 57 mm OAL ; 3 FL ; 90 Degrees

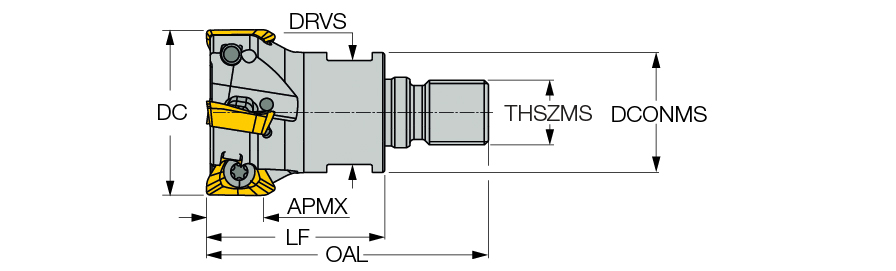

| Cutting Diameter (DC/DCX) | 25 mm | Tool Type | 90° indexable endmills |
| Cutting Diameter (DC) | 25 mm | Connection Thread Nominal Size Machine Side (THSZMS) | M12 |
| Cutting Item Count (CICT) | 3 | Drive Size (DRVS) | 17.1 mm |
| Depth of Cut Maximum (APMX) | 8 mm | Flute Count (NOF) | 3 |
| Overall Length (OAL) | 57 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Ramping Angle Maximum (RMPX) | 2.9 Degrees | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 21 mm | Measurement Type | Metric |
| Master Insert Identification (MIID) | HM390 TPKT 100304PDR | Body Material | Steel |
| Weight of Item (WT) | 0.08 Kg | Connection Code Machine Side (CCMS) | FLEXFIT |
| Functional Length (LF) | 35 mm |
Product Features
| Family Description | 90° endmills with a FLEXFIT threaded adaptation carrying HM390 TPKT 1003 triangular inserts with 3 helical cutting edges | Country of Origin | Israel |
| Remarks | When installing inserts with a corner radius greater than 2 mm, modify the tool body by rounding the corner of the insert pocket, as detailed in More Info Before mounting the FLEX-FIT adaptation, clean the mating surfaces and threads. Tighten to eliminate gaps, using the torque value from TQ_3 For adaptation, click on More Info |
Shipping Info
Package Weight
0.395
