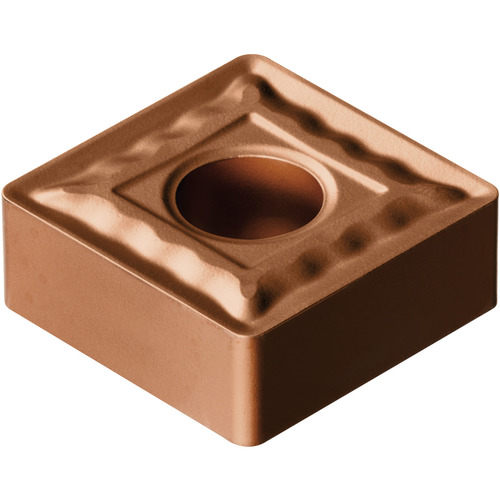

SNMG433QM 1115 INSERT
Turning Insert; SNMG433QM 1115 ; 1/2″ IC ; 0.047″ Corner Radius ; Carbide ; Neutral ; TiAlN+AlCr2O3
| Applicable Material | | Cast Iron|Hi-Temp Alloys|Stainless Steel|Steel|Non-Ferrous Material | | Fixing Hole Diameter (D1) | 0.203″ |
| Insert Style | SNMG | Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 0.047″ | Cutting Direction (HAND) | Neutral |
| Insert Size | 433 | Chip Breaker Type | QM |
| Insert Thickness (S) | 0.187″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 1/2″ | Shape | Square |
| Cutting Edge Material | Carbide | Series/List # | SNMG 433-QM |
| Coating | TiAlN|AlCr2O3 | Model No | SNMG433-QM |
| Grade | 1115 |
Product Features
| Family Description | 0 | Country of Origin | Sweden |
Shipping Info
Package Weight
0.021
