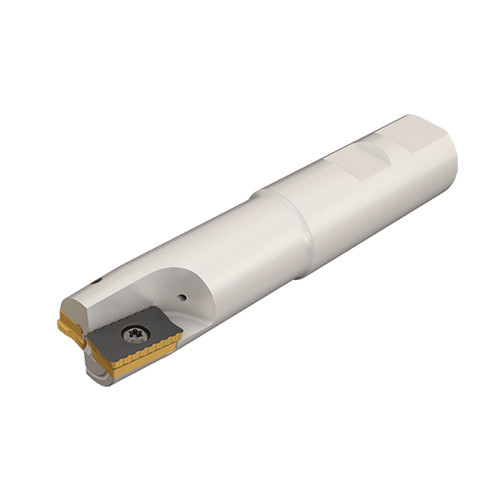

P290 EPW D32-3-210-C32-18
Indexable End Mill; 32 mm Dia. × 18 mm LOC × 32 mm Shank Dia. × 210 mm OAL × 127.7 mm LU ; 3 FL ; Round Shank ; 90 Degrees

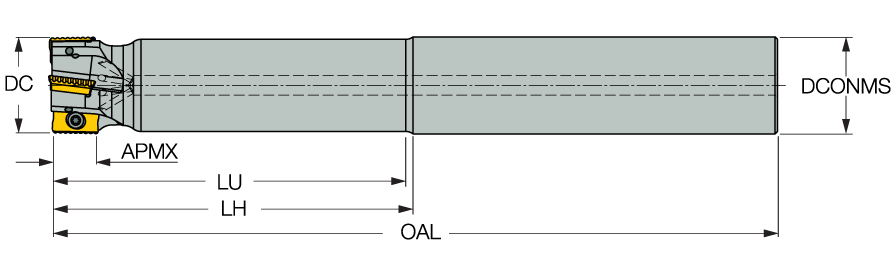

| Cutting Diameter (DC/DCX) | 32 mm | Head Length (LH) | 130 mm |
| Cutting Diameter (DC) | 32 mm | Functional Length (LF) | 210 mm |
| Cutting Item Count (CICT) | 3 | Tool Type | 90° indexable endmills |
| Depth of Cut Maximum (APMX) | 18 mm | Usable Length (LU) | 127.7 mm |
| Overall Length (OAL) | 210 mm | Flute Count (NOF) | 3 |
| Shank Type | Round | Coolant Supply Property (CSP) | Coolant Thru |
| Ramping Angle Maximum (RMPX) | 2 Degrees | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Rampdown | Shouldering | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Measurement Type | Metric |
| Master Insert Identification (MIID) | P290 ACKT 1806PDR-FW | Body Material | Steel |
| Weight of Item (WT) | 1.06 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | Long reach endmills carrying 12 and 18 mm long edged inserts. | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info. |
