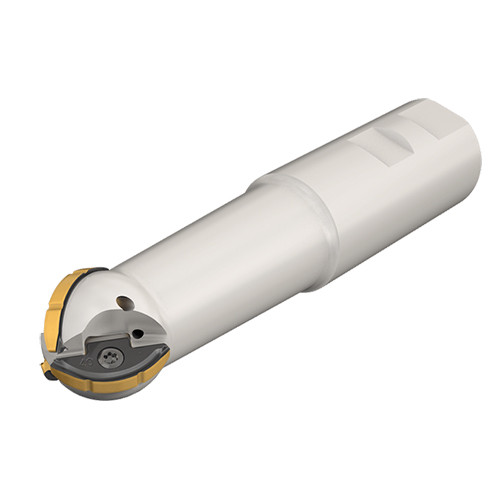

BLP D50-320-400-W50
Indexable End Mill; 50 mm Dia. × 37.5 mm LOC × 50 mm Shank Dia. × 400 mm OAL ; Weldon Shank

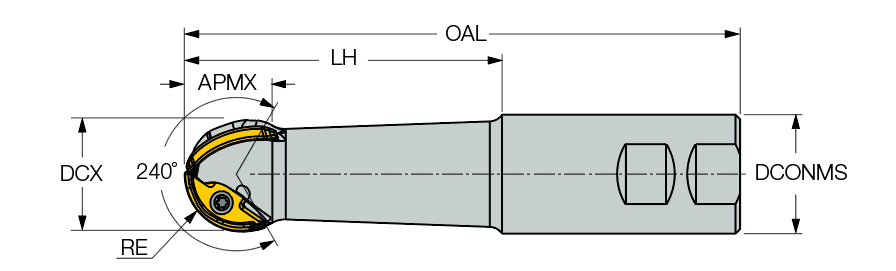

| Cutting Diameter (DC/DCX) | 50 mm | Functional Length (LF) | 355 mm |
| Cutting Diameter (DC) | 50 mm | Tool Type | Ball nose endmills |
| Cutting Item Count (CICT) | 3 | Flute Count (NOF) | 3 |
| Depth of Cut Maximum (APMX) | 37.5 mm | Corner Radius (RE) | 25 mm |
| Overall Length (OAL) | 400 mm | Body Half Taper Angle (BHTA) | 240 Degrees |
| Shank Type | Weldon | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 50 mm | Measurement Type | Metric |
| Master Insert Identification (MIID) | BLR D500-QCS | Body Material | Steel |
| Weight of Item (WT) | 4.62 Kg | Connection Code Machine Side (CCMS) | Weldon |
| Head Length (LH) | 320 mm | Cutting Diameter Maximum (DCX) | 50 mm |
Product Features
| Family Description | Three flute fully effective 240° ball nose endmills carrying double-sided inserts. Designed for roughing, semi finishing and finishing at high feed rates. | Country of Origin | Turkey |
