DNGG3.53.50.5ML K10

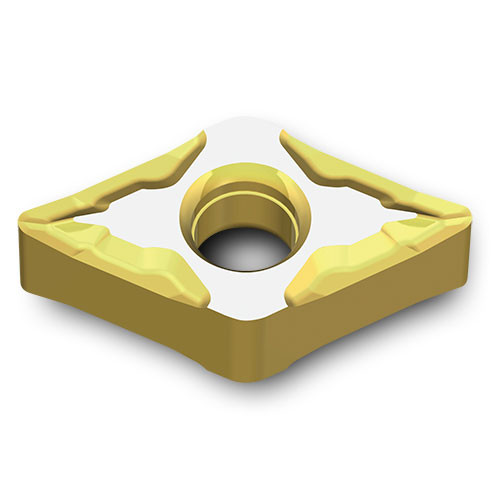

Turning Insert; 60 Triangle ; 0.533″ Length × 0.438″ IC × 0.008″ Corner Radius ; K10
| Insert Style | DNGG | Min. Turning Feed (ft(min)) | 0.002″ |
| Corner Radius (RE) | 0.008″ | Max. Turning Feed (ft(max)) | 0.006″ |
| Insert Size | 3.53.50 | Number of Cutting Edges | 4 |
| Cutting Edge Length (L) | 0.533″ | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 0.219″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 0.438″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 55 Degrees | Shape | 60° Triangle |
| Grade | K10 | Series/List # | ISOI |
| Min D.O.C. | 0.008″ | Body Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.047″ | Model No | 8866423 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.013
