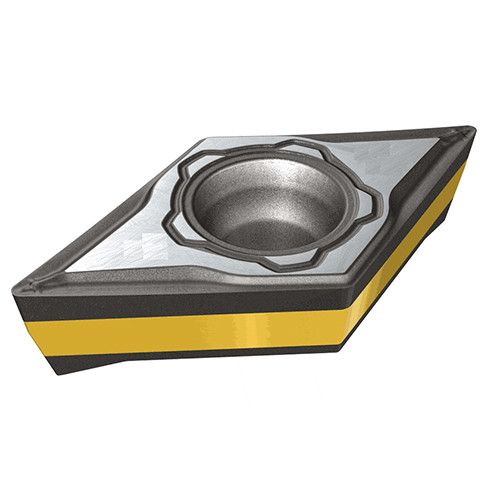

DCMT 13T504-SM-SL IC8150

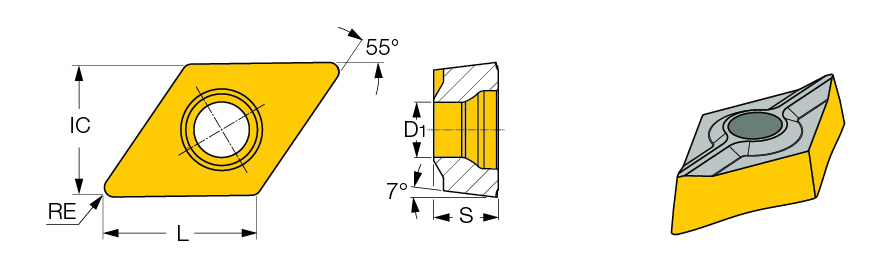

Turning Insert; 55 Rhombic ; 0.528″ Length × 0.433″ IC × 0.0157″ Corner Radius ; IC8150 ; Carbide ; TiCN+Al2O3+TiCN+TiN
| Applicable Material | | Steel | Cast Iron | | Min D.O.C. | 0.02″ |
| Application | | Ext. 55° Diamond 107.5° Appr. | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 91° Approach | Ext. 55° Diamond 93° Approach | Int. 55° Diamond 93 95° Approac | Y Axis for Swiss Type Machines | Y Axis Variable Approach angle | | Depth of Cut Maximum (APMX) | 0.098″ |
| Insert Style | DCMT | Min. Turning Feed (ft(min)) | 0.00275 ″/rev |
| Corner Radius (RE) | 0.0157″ | Max. Turning Feed (ft(max)) | 0.01062 ″/rev |
| Insert Size | 13T | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 0.528″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.201″ | Chip Breaker Type | SM |
| Inscribed Circle Diameter (IC) | 0.433″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 55° Rhombic |
| Coating | TiCN+Al2O3+TiCN+TiN | Series/List # | ISOI |
| Grade | IC8150 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.177″ | Model No | 8866423 |
| Tool Type | Turn Positive Inserts |
Product Features
| Family Description | Inserts for semi-finish and finish turning. A ridge at the insert bottom fits onto a long groove on the tool's seat ensures high edge location precision. Low cutting forces for a wide range of materials including soft and exotic alloys. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.018
