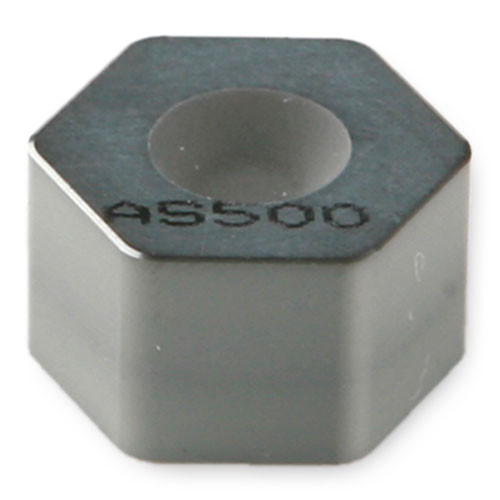

HNGX453T7-CH AS500
Turning Insert; 60 Triangle ; 0.289″ Length × 1/2″ IC × 0.047″ Corner Radius ; AS500 ; Ceramic

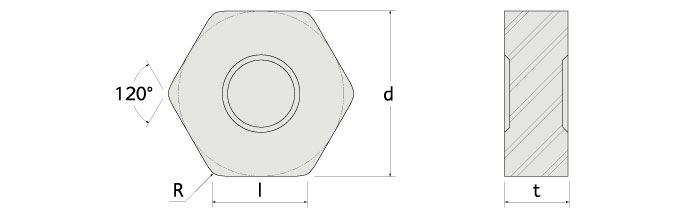

| Insert Style | HNGX | Depth of Cut Maximum (APMX) | 0.079″ |
| Corner Radius (RE) | 0.047″ | Min. Turning Feed (ft(min)) | 0.002″ |
| Insert Size | 453 | Max. Turning Feed (ft(max)) | 0.01″ |
| Cutting Edge Length (L) | 0.289″ | Number of Cutting Edges | 12 |
| Insert Thickness (S) | 0.313″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 120 Degrees | Shape | 60° Triangle |
| Cutting Edge Material | Ceramic | Series/List # | ISOI |
| Grade | AS500 | Body Material | Carbide |
| Min D.O.C. | 0.004″ | Model No | 8866423 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.012
