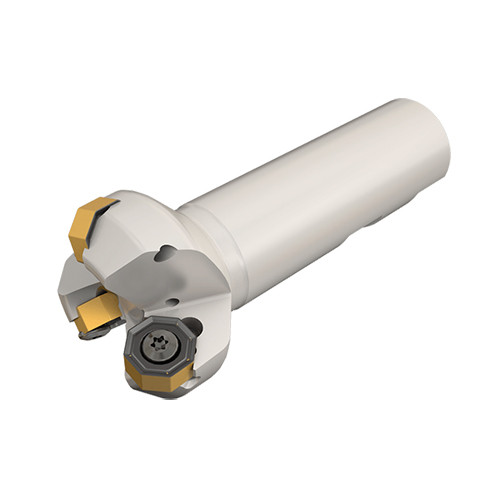

SOE45 8/16-D032-03-W25R
Indexable End Mill; 32 mm Dia. × 2.9 mm LOC × 25 mm Shank Dia. × 101.3 mm OAL ; Weldon Shank ; 45 Degrees
| Cutting Diameter (DC/DCX) | 32 mm | Head Length (LH) | 101.2 mm |
| Cutting Diameter (DC) | 29.65 mm | Functional Length (LF) | 68 mm |
| Cutting Item Count (CICT) | 3 | Tool Type | Chamfering endmills |
| Depth of Cut Maximum (APMX) | 3.5 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 100 mm | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Shank Type | Weldon | Diameter | 27.5 mm |
| Ramping Angle Maximum (RMPX) | 4.2 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Profiling | Rampdown | Slanted Shoulder & Chamfer | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Body Material | Steel |
| Master Insert Identification (MIID) | ONHU 050505-TN | Connection Code Machine Side (CCMS) | Weldon |
| Weight of Item (WT) | 0.38 Kg | Cutting Diameter Maximum (DCX) | 42.4 mm |
Product Features
| Family Description | Multifunctional endmills for octagonal, square and round insert contours with several entry angles. | Country of Origin | Israel |

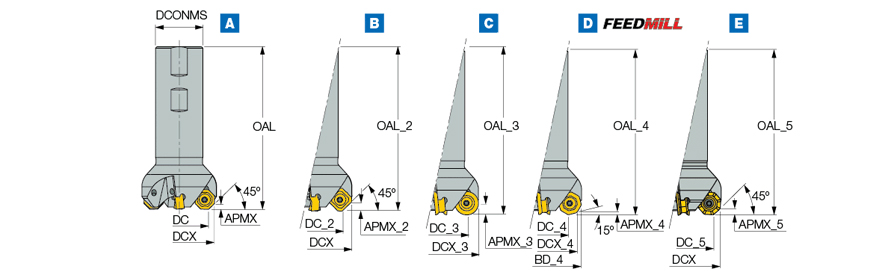

| Remarks | A- with ONMU 0505... insert B- with S845 SNMU 1305... insert C- with RXMT 1607N insert D- with OXMT 0507R08-FF insert E- with OXMT 050705-R-HP insert Use only Torx Plus keys |
Shipping Info
Package Weight
1.056
