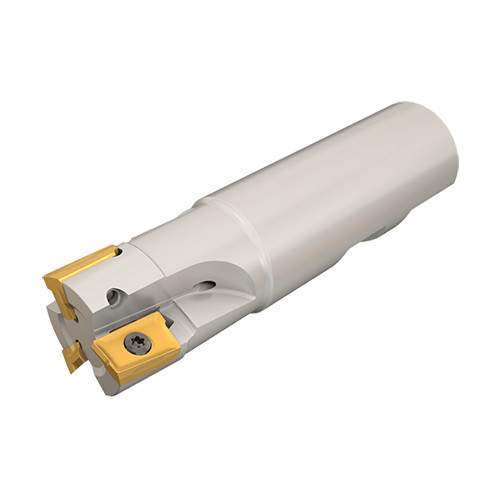

3M E90AX D25-W25-13-C
Indexable End Mill; 25 mm Dia. × 12.5 mm LOC × 25 mm Shank Dia. × 95 mm OAL × 33 mm LU ; 3 FL ; Weldon Shank ; 90 Degrees
| Cutting Diameter (DC/DCX) | 25 mm | Head Length (LH) | 35 mm |
| Cutting Diameter (DC) | 25 mm | Functional Length (LF) | 63 mm |
| Cutting Item Count (CICT) | 3 | Tool Type | 90° indexable endmills |
| Depth of Cut Maximum (APMX) | 12.5 mm | Usable Length (LU) | 33 mm |
| Overall Length (OAL) | 95 mm | Flute Count (NOF) | 3 |
| Shank Type | Weldon | Coolant Supply Property (CSP) | Coolant Thru |
| Ramping Angle Maximum (RMPX) | 0 Degrees | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Counter Boring | Facing | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Measurement Type | Metric |
| Master Insert Identification (MIID) | 3M AXKT 1304PDR | Body Material | Steel |
| Weight of Item (WT) | 0.28 Kg | Connection Code Machine Side (CCMS) | Weldon |
Product Features
| Family Description | 90° endmills heavy duty pocket design: dovetail section carrying inserts with helical cutting edge and positive rake angle. Enable a secure clamping and high durability in rough applications. | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info Reduce feed by 50% during engagement and exit from the workpiece |
Shipping Info
Package Weight
0.807
