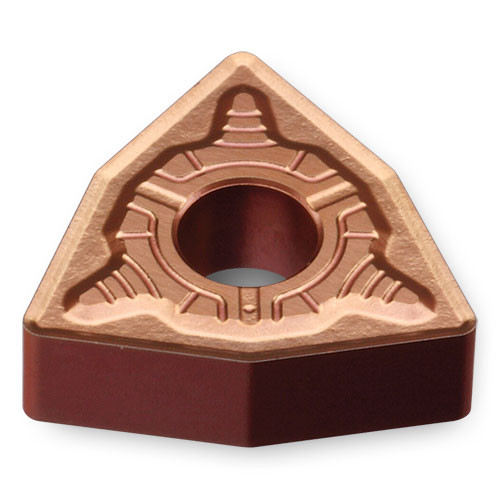

WNMG432EM TT9080
Turning Insert; 60 Triangle ; 0.343″ Length × 1/2″ IC × 0.031″ Corner Radius ; TT9080 ; Carbide ; TiAlN+TiN
| Insert Style | WNMG | Depth of Cut Maximum (APMX) | 0.16″ |
| Corner Radius (RE) | 0.031″ | Min. Turning Feed (ft(min)) | 0.005″ |
| Insert Size | 432 | Max. Turning Feed (ft(max)) | 0.02″ |
| Cutting Edge Length (L) | 0.343″ | Number of Cutting Edges | 6 |
| Insert Thickness (S) | 0.187″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/2″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 80 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 60° Triangle |
| Coating | TiAlN+TiN | Series/List # | ISOI |
| Grade | TT9080 | Body Material | Carbide |
| Min D.O.C. | 0.031″ | Model No | 8866423 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.024
