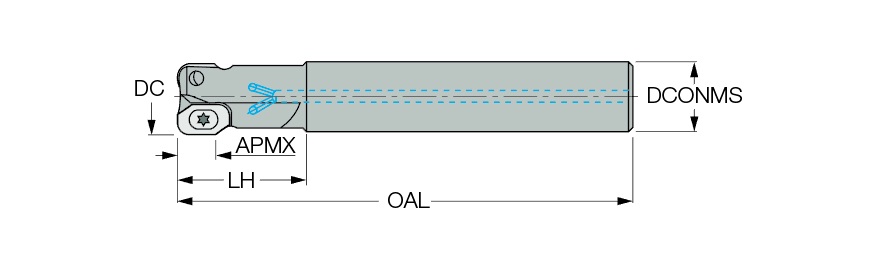

HM90 EAL-D25-C25L170-16BR
| Cutting Diameter (DC/DCX) | 25 mm | Head Length (LH) | 52 mm |
| Cutting Diameter (DC) | 25 mm | Tool Type | 90° Indexable For Aluminum |
| Cutting Item Count (CICT) | 1 | Usable Length (LU) | 52 mm |
| Depth of Cut Maximum (APMX) | 16 mm | Flute Count (NOF) | 4 |
| Overall Length (OAL) | 170 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 2.1 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Body Material | Steel |
| Master Insert Identification (MIID) | HM390 TDKT 1505PDR | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg |
Product Features

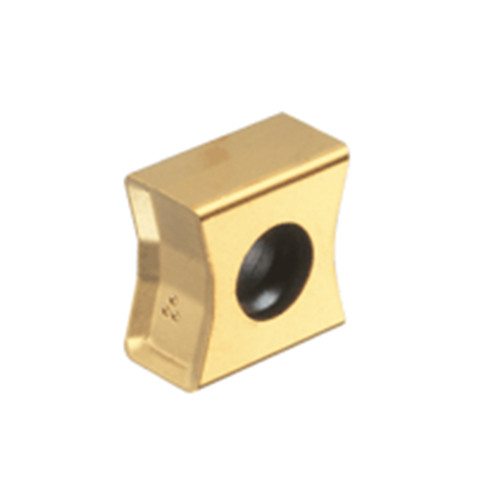

| Family Description | Long reach endmills, carrying HM90 APCR 1605... inserts with corner radii equal or larger than 5 mm, for machining aluminum. | Country of Origin | IL |
| Remarks | Note: HM90 APCR 1605..R-P inserts with corner radii smaller than 5 mm should not be used on BR tools Insert tightening torque: 600 Nxcm For adaptation click on "More Info" |
Shipping Info
Package Weight
1.4440
