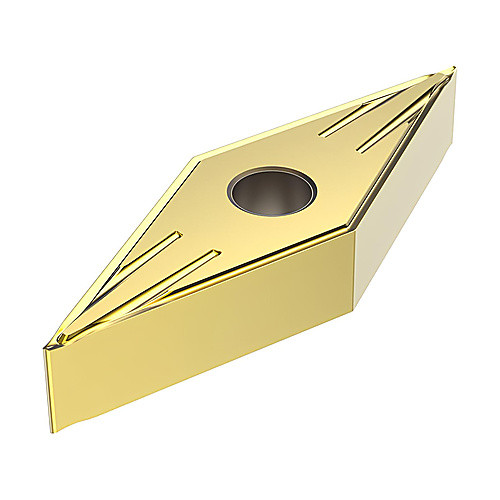

VNMG 330.5 FF2 CP500, 0.008″ Corner Radius, 0.187″ Thick, 3/8″ Inscribed Circle, TiAlN|TiN, Turning Indexable Insert
Turning Insert; 35 Diamond ; 1.307″ Length × 3/8″ IC × 0.008″ Corner Radius ; CP500 ; Carbide ; | TiAlN | TiN |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Grade | CP500 |
| Insert Style | VNMG | Tool Type | Turn Negative Inserts |
| Corner Radius (RE) | 0.008″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 330.5 | Cutting Direction (HAND) | Neutral |
| Cutting Edge Length (L) | 1.307″ | Chip Breaker Type | FF2 |
| Insert Thickness (S) | 0.187″ | Quantity | 5 |
| Inscribed Circle Diameter (IC) | 3/8″ | Shape | 35° Diamond |
| Cutting Edge Material | Carbide | Series/List # | VNMG 330.5-FF2 |
| Coating | | TiAlN | TiN | |
Product Features
| Family Description | 0 | Country of Origin | Sweden |
Shipping Info
Package Weight
0.022
