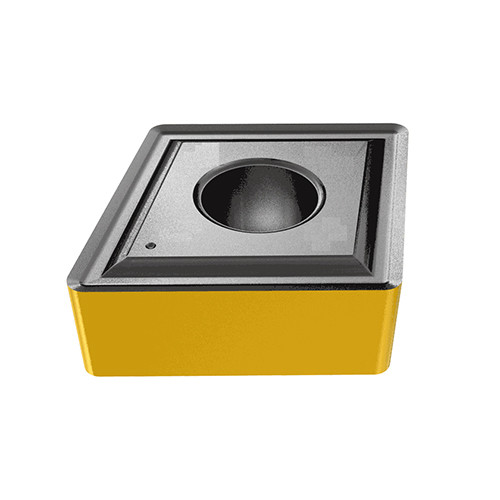

CNMG 432-VL IC804
A double-sided 80° rhombic inserts with a chipformer used on high temperature alloys and stainless steel parts such as valves. Used for facing, longitudinal turning and profiling in roughing and finishing conditions.
| Applicable Material | | Super-Alloys / Titanium | | Min D.O.C. | 0.02″ |
| Application | | Ext. 100° Diamond 75° Approach | Ext. 100° Diamond 75°Face Appr | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 95° Approach | | Depth of Cut Maximum (APMX) | 0.157″ |
| Insert Style | CNMG | Min. Turning Feed (ft(min)) | 0.0039 ″/rev |
| Corner Radius (RE) | 0.0315″ | Max. Turning Feed (ft(max)) | 0.0098 ″/rev |
| Insert Size | 120 | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 0.508″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.187″ | Chip Breaker Type | VL |
| Inscribed Circle Diameter (IC) | 1/2″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 60° Triangle |
| Coating | AlTiN "SUMO TEC" | Series/List # | ISOI |
| Grade | IC804 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.203″ | Model No | 8866423 |
| Tool Type | Turn Negative Inserts |
Product Features
| Family Description | A double-sided 80° rhombic inserts with a chipformer used on high temperature alloys and stainless steel parts such as valves. Used for facing, longitudinal turning and profiling in roughing and finishing conditions. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
LocalField10
0
Package Length
4.00000
Package Width
1.50000
Package Height
.50000
Package Weight
0.024
