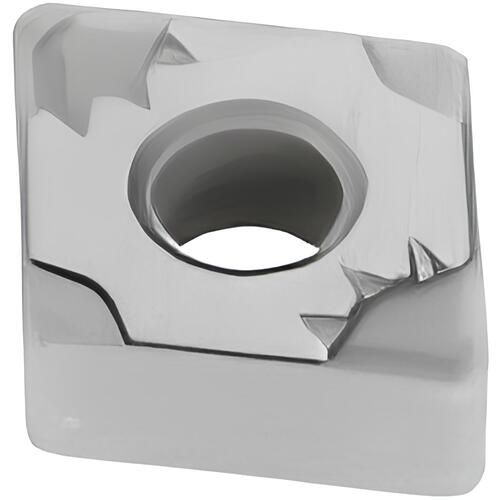

CNMG434-MF5 GRADE TP1501
Turning Insert; CNMG434-MF5 TP1501 ; 1/2″ IC ; 0.062″ Corner Radius ; Carbide ; Neutral ; TiCN+Al2O3
| Applicable Material | Cast Iron|Steel | Coating | TICN|Al2O3 |
| Insert Style | CNMG | Grade | TP1501 |
| Corner Radius (RE) | 0.062″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 434 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 0.187″ | Chip Breaker Type | MF5 |
| Inscribed Circle Diameter (IC) | 1/2″ | Quantity | 10 |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | 0 | Country of Origin | USA |
Shipping Info
Package Weight
0.02
