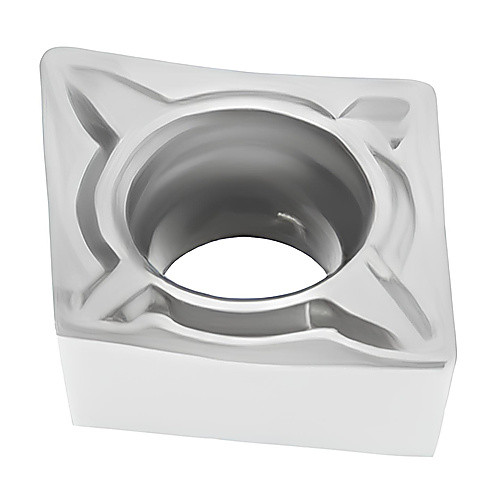

CCMT 21.50.5 F1 TP1501, 0.008″ Corner Radius, 0.094″ Thick, 1/4″ Inscribed Circle, TICN|Al2O3, Turning Indexable Insert
Turning Insert; 80 Diamond ; 0.2559″ Length × 1/4″ IC × 0.008″ Corner Radius ; TP1501 ; Carbide ; | Al2O3 | TiCN |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Cast Iron | | Grade | TP1501 |
| Insert Style | CCMT | Tool Type | Turn Positive Inserts |
| Corner Radius (RE) | 0.008″ | Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 21.50.5 | Cutting Direction (HAND) | Neutral |
| Cutting Edge Length (L) | 0.2559″ | Chip Breaker Type | F1 |
| Insert Thickness (S) | 0.094″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 1/4″ | Shape | 80° Diamond |
| Cutting Edge Material | Carbide | Series/List # | CCMT 21.50.5-F1 |
| Coating | | Al2O3 | TiCN | |
Product Features
| Family Description | 0 | Country of Origin | Sweden |
Shipping Info
Package Weight
0.002
