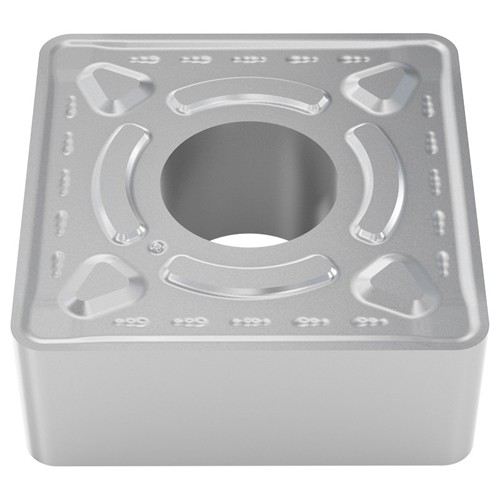

SNMG 544 M6 TP2501, 0.062″ Corner Radius, 1/4″ Thick, 5/8″ Inscribed Circle, TICN|Al2O3, Square, Turning Indexable Insert
Turning Insert; SNMG544-M6 TP2501 ; 5/8″ IC ; 0.062″ Corner Radius ; Carbide ; Neutral ; TiCN+Al2O3
| Applicable Material | Cast Iron|Stainless Steel|Steel | Grade | TP2501 |
| Insert Style | SNMG | Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 0.062″ | Cutting Direction (HAND) | Neutral |
| Insert Size | 544 | Chip Breaker Type | M6 |
| Insert Thickness (S) | 1/4″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 5/8″ | Shape | Square |
| Cutting Edge Material | Carbide | Series/List # | SNMG 544-M6 |
| Coating | TICN|Al2O3 |
Product Features
| Family Description | 0 | Country of Origin | USA |
Shipping Info
Package Weight
0.042
