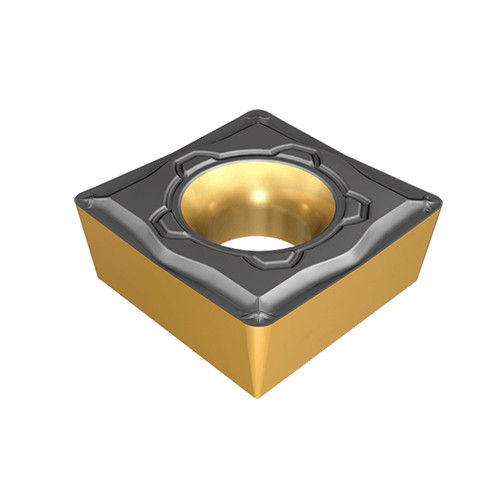

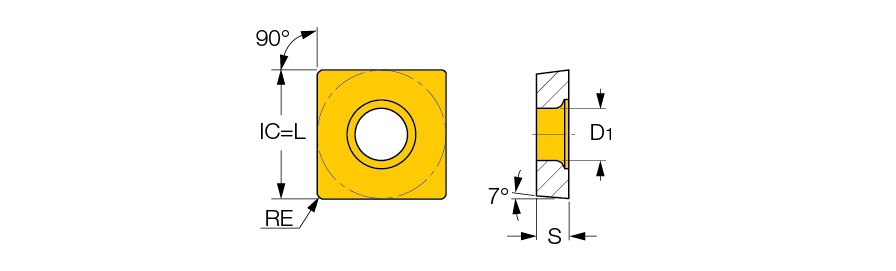

SCMT 432-M3P IC8150
Turning Insert; 60 Triangle ; 1/2″ Length × 1/2″ IC × 0.0315″ Corner Radius ; IC8150 ; Carbide ; TiCN+Al2O3+TiCN+TiN
| Applicable Material | | Steel | Cast Iron | | Min D.O.C. | 0.039″ |
| Application | | Ext. 90° Square 45° Approach | Ext. 90° Square 75° Approach | Ext. 90°Square 45°Face&Turn Ap | Int. 90° Square 75° Approach | | Depth of Cut Maximum (APMX) | 0.157″ |
| Insert Style | SCMT | Min. Turning Feed (ft(min)) | 0.00393 ″/rev |
| Corner Radius (RE) | 0.0315″ | Max. Turning Feed (ft(max)) | 0.01181 ″/rev |
| Insert Size | 432 | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 1/2″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.187″ | Chip Breaker Type | M3P |
| Inscribed Circle Diameter (IC) | 1/2″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 60° Triangle |
| Coating | TiCN+Al2O3+TiCN+TiN | Series/List # | ISOI |
| Grade | IC8150 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.217″ | Model No | 8866423 |
| Tool Type | Turn Positive Inserts |
Product Features
| Family Description | Square positive flank inserts for medium machining conditions on steel. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.020
