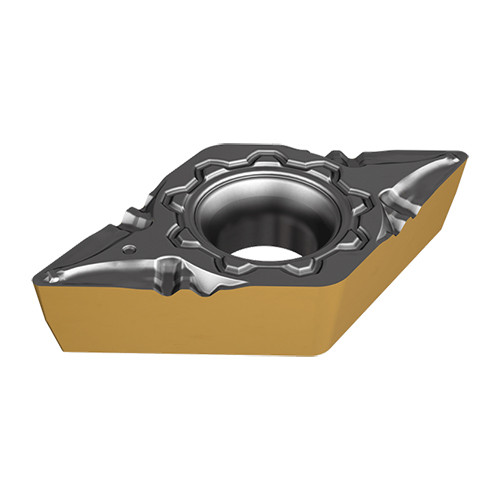

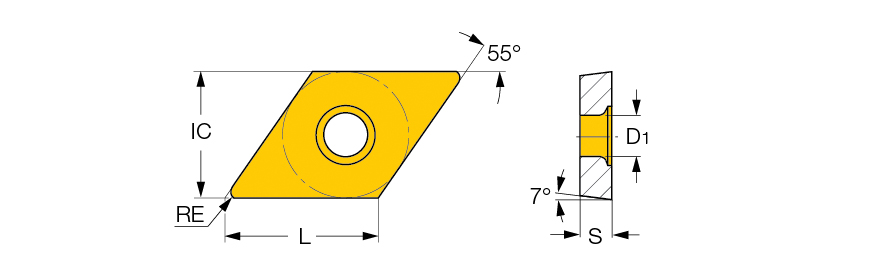

DCMT 3-2-F3P IC830
Turning Insert; 60 Triangle ; 0.457″ Length × 3/8″ IC × 0.0315″ Corner Radius ; IC830 ; Carbide ; AlTiN+TiN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Min D.O.C. | 0.006″ |
| Application | | Ext. 55° Diamond 107.5° Appr. | Int. 55° Diamond 93 95° Approac | Y Axis for Swiss Type Machines | | Depth of Cut Maximum (APMX) | 0.079″ |
| Insert Style | DCMT | Min. Turning Feed (ft(min)) | 0.00314 ″/rev |
| Corner Radius (RE) | 0.0315″ | Max. Turning Feed (ft(max)) | 0.01259 ″/rev |
| Insert Size | 3-2 | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 0.457″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.156″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | F3P |
| Insert Included Angle (EPSR) | 60 Degrees | Quantity | 10 |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | AlTiN+TiN | Shape | 60° Triangle |
| Grade | IC830 | Series/List # | ISOI |
| Fixing Hole Diameter (D1) | 0.173″ | Body Material | Carbide |
| Tool Type | Turn Positive Inserts | Model No | 8866423 |
Product Features
| Family Description | 55° rhombic 7° flank inserts for semi-finishing & finishing of steel. Low cutting forces due to sharp cutting edge and a positive rake angle, providing very reliable performance and excellent tool life. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.012
